HM-Abstechstähle 197

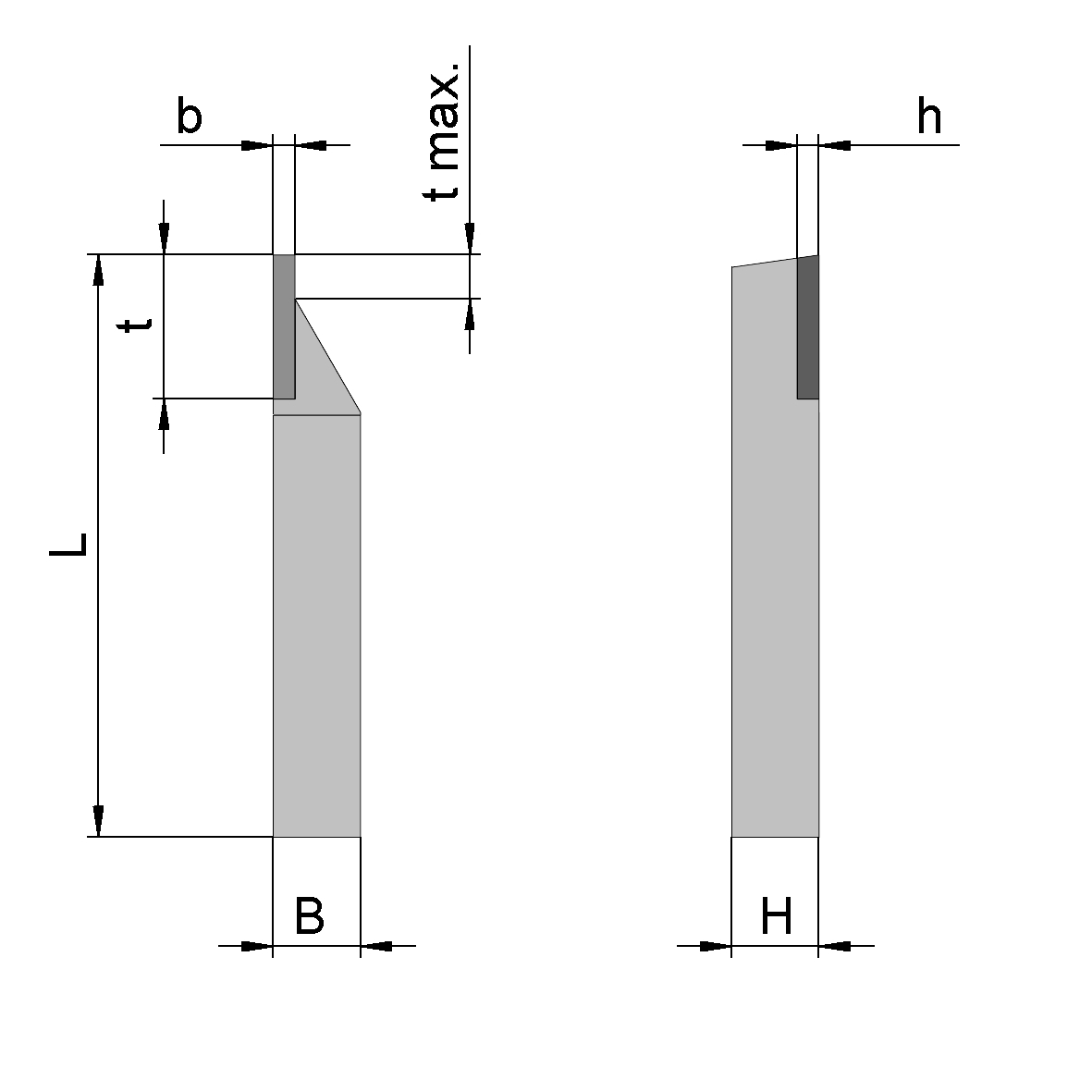

Bezeichnung Artikel-Nr. Drehrichtung H B L b h t max. t HM-Sorte In Warenkorb
P2-L197-0606-1.0-FK 149978 L 6 6 130 1,0 3,0 4,5 20,0 FK

Stk.
P2-L197-0606-1.0-K10 146664 L 6 6 130 1,0 3,0 4,5 20,0 K10

Stk.
P2-L197-0606-1.5-FK 149980 L 6 6 130 1,5 3,0 4,5 20,0 FK

Stk.
P2-L197-0606-1.5-K10 102475 L 6 6 130 1,5 3,0 4,5 20,0 K10

Stk.
P2-L197-0606-2.0-K10 156734 L 6 6 130 2,0 3,0 4,5 20,0 K10

Stk.
P2-L197-0707-1.0-FK 148530 L 7 7 140 1,0 3,0 5,0 20,0 FK

Stk.
P2-L197-0707-1.0-K10 149981 L 7 7 140 1,0 3,0 5,0 20,0 K10

Stk.
P2-L197-0707-1.5-FK 102476 L 7 7 140 1,5 3,0 5,0 20,0 FK

Stk.
P2-L197-0707-1.5-K10 102477 L 7 7 140 1,5 3,0 5,0 20,0 K10

Stk.
P2-L197-0707-2.0-FK 145509 L 7 7 140 2,0 3,0 5,0 20,0 FK

Stk.
P2-L197-0707-2.0-K10 102479 L 7 7 140 2,0 3,0 5,0 20,0 K10

Stk.
P2-L197-0707-2.5-FK 102480 L 7 7 140 2,5 3,0 5,0 20,0 FK

Stk.
P2-L197-0707-2.5-K10 149987 L 7 7 140 2,5 3,0 5,0 20,0 K10

Stk.
P2-L197-0707-3.0-FK 149989 L 7 7 140 3,0 3,0 5,0 20,0 FK

Stk.
P2-L197-0707-3.0-K10 149988 L 7 7 140 3,0 3,0 5,0 20,0 K10

Stk.
P2-L197-0707-4.0-FK 181966 L 7 7 140 4,0 3,0 5,0 20,0 FK

Stk.
P2-L197-0808-1.0-FK 149990 L 8 8 140 1,0 3,0 6,0 20,0 FK

Stk.
P2-L197-0808-1.0-K10 145575 L 8 8 140 1,0 3,0 6,0 20,0 K10

Stk.
P2-L197-0808-1.5-FK 102481 L 8 8 140 1,5 3,0 6,0 20,0 FK

Stk.
P2-L197-0808-1.5-K10 102482 L 8 8 140 1,5 3,0 6,0 20,0 K10

Stk.
P2-L197-0808-2.0-FK 102486 L 8 8 140 2,0 3,0 6,0 20,0 FK

Stk.
P2-L197-0808-2.0-K10 102487 L 8 8 140 2,5 3,0 6,0 20,0 K10

Stk.
P2-L197-0808-2.5-FK 102488 L 8 8 140 2,5 3,0 6,0 20,0 FK

Stk.
P2-L197-0808-2.5-K10 147537 L 8 8 140 2,5 3,0 6,0 20,0 K10

Stk.
P2-L197-0808-3.0-FK 102489 L 8 8 140 3,0 3,0 6,0 20,0 FK

Stk.
P2-L197-0808-3.0-K10 102490 L 8 8 140 3,0 3,0 6,0 20,0 K10

Stk.
P2-L197-0808-4.0-FK 102491 L 8 8 140 4,0 3,0 6,0 20,0 FK

Stk.
P2-L197-0808-4.0-K10 145577 L 8 8 140 4,0 3,0 6,0 20,0 K10

Stk.
P2-L197-0808-5.0-FK 123154 L 8 8 140 5,0 3,0 6,0 20,0 FK

Stk.
P2-L197-0808-5.0-K10 144976 L 8 8 140 5,0 3,0 6,0 20,0 K10

Stk.
P2-L197-0808-6.0-FK 102492 L 8 8 140 6,0 3,0 6,0 20,0 FK

Stk.
P2-L197-0808-6.0-K10 147523 L 8 8 140 6,0 3,0 6,0 20,0 K10

Stk.
P2-L197-1010-1.0-FK 149998 L 10 10 140 1,0 4,0 5,0 20,0 FK

Stk.
P2-L197-1010-1.0-K10 146666 L 10 10 140 1,0 4,0 5,0 20,0 K10

Stk.
P2-L197-1010-1.5-FK 149999 L 10 10 140 1,5 4,0 5,0 20,0 FK

Stk.
P2-L197-1010-1.5-K10 102493 L 10 10 140 1,5 4,0 5,0 20,0 K10

Stk.
P2-L197-1010-2.0-FK 102494 L 10 10 140 2,0 4,0 5,0 20,0 FK

Stk.
P2-L197-1010-2.0-K10 102495 L 10 10 140 2,0 4,0 5,0 20,0 K10

Stk.
P2-L197-1010-2.5-FK 102496 L 10 10 140 2,5 4,0 5,0 20,0 FK

Stk.
P2-L197-1010-2.5-K10 102497 L 10 10 140 2,5 4,0 5,0 20,0 K10

Stk.
P2-L197-1010-3.0-FK 102498 L 10 10 140 3,0 3,0 6,0 20,0 FK

Stk.
P2-L197-1010-3.0-K10 102499 L 10 10 140 3,0 3,0 6,0 20,0 K10

Stk.
P2-L197-1010-4.0-FK 102500 L 10 10 140 4,0 3,0 6,0 20,0 FK

Stk.
P2-L197-1010-4.0-K10 102501 L 10 10 140 4,0 3,0 6,0 20,0 K10

Stk.
P2-L197-1010-5.0-FK 150003 L 10 10 140 5,0 3,0 6,0 20,0 FK

Stk.
P2-L197-1010-5.0-K10 102502 L 10 10 140 5,0 3,0 6,0 20,0 K10

Stk.
P2-L197-1010-6.0-FK 102503 L 10 10 140 6,0 3,0 6,0 20,0 FK

Stk.
P2-L197-1010-6.0-K10 102504 L 10 10 140 6,0 3,0 6,0 20,0 K10

Stk.
P2-L197-1212-1.0-FK 117831 L 12 12 140 1,0 4,0 5,0 20,0 FK

Stk.
P2-L197-1212-1.0-K10 150006 L 12 12 140 1,0 4,0 5,0 20,0 K10

Stk.
P2-L197-1212-1.5-FK 148202 L 12 12 140 1,5 4,0 5,0 20,0 FK

Stk.
P2-L197-1212-1.5-K10 146802 L 12 12 140 1,5 4,0 5,0 20,0 K10

Stk.
P2-L197-1212-2.0-FK 102505 L 12 12 140 2,0 4,0 5,0 20,0 FK

Stk.
P2-L197-1212-2.0-K10 102506 L 12 12 140 2,0 4,0 5,0 20,0 K10

Stk.
P2-L197-1212-2.5-FK 102507 L 12 12 140 2,5 4,0 5,0 20,0 FK

Stk.
P2-L197-1212-2.5-K10 102508 L 12 12 140 2,5 4,0 5,0 20,0 K10

Stk.
P2-L197-1212-3.0-FK 102509 L 12 12 140 3,0 4,0 6,0 20,0 FK

Stk.
P2-L197-1212-3.0-K10 102510 L 12 12 140 3,0 4,0 6,0 20,0 K10

Stk.
P2-L197-1212-4.0-FK 102511 L 12 12 140 4,0 3,0 6,0 20,0 FK

Stk.
P2-L197-1212-4.0-K10 118457 L 12 12 140 4,0 3,0 6,0 20,0 K10

Stk.
P2-L197-1212-5.0-FK 102512 L 12 12 140 5,0 3,0 6,0 20,0 FK

Stk.
P2-L197-1212-5.0-K10 118442 L 12 12 140 5,0 3,0 6,0 20,0 K10

Stk.
P2-L197-1212-6.0-FK 147856 L 12 12 140 6,0 4,0 6,0 20,0 FK

Stk.
P2-L197-1212-6.0-K10 116898 L 12 12 140 6,0 4,0 6,0 20,0 K10

Stk.
P2-L197-1212-8.0-K10 189823 L 12 12 140 8,0 4,0 6,0 20,0 K10

Stk.
P2-L197-1616-1.0-FK 150005 L 16 16 140 1,0 4,0 5,0 20,0 FK

Stk.
P2-L197-1616-1.0-K10 150004 L 16 16 140 1,0 4,0 5,0 20,0 K10

Stk.
P2-L197-1616-1.5-FK 150016 L 16 16 140 1,5 4,0 5,0 20,0 FK

Stk.
P2-L197-1616-1.5-K10 150008 L 16 16 140 1,5 4,0 5,0 20,0 K10

Stk.
P2-L197-1616-2.0-FK 150018 L 16 16 140 2,0 4,0 5,0 20,0 FK

Stk.
P2-L197-1616-2.0-K10 150009 L 16 16 140 2,0 4,0 5,0 20,0 K10

Stk.
P2-L197-1616-2.5-FK 150019 L 16 16 140 2,5 4,0 5,0 20,0 FK

Stk.
P2-L197-1616-2.5-K10 150010 L 16 16 140 2,5 4,0 5,0 20,0 K10

Stk.
P2-L197-1616-3.0-FK 102513 L 16 16 140 3,0 4,0 6,0 20,0 FK

Stk.
P2-L197-1616-3.0-K10 150011 L 16 16 140 3,0 4,0 6,0 20,0 K10

Stk.
P2-L197-1616-4.0-FK 146668 L 16 16 140 4,0 4,0 6,0 20,0 FK

Stk.
P2-L197-1616-4.0-K10 150012 L 16 16 140 4,0 4,0 6,0 20,0 K10

Stk.
P2-L197-1616-6.0-FK 150020 L 16 16 140 6,0 4,0 6,0 20,0 FK

Stk.
P2-L197-1616-6.0-K10 150013 L 16 16 140 6,0 4,0 6,0 20,0 K10

Stk.
P2-L197-1616-8.0-FK 150021 L 16 16 140 8,0 4,0 6,0 20,0 FK

Stk.
P2-L197-1616-8.0-K10 150014 L 16 16 140 8,0 4,0 6,0 20,0 K10

Stk.
P2-L197-1616-10.0-FK 150022 L 16 16 140 10,0 4,0 6,0 20,0 FK

Stk.
P2-L197-1616-10.0-K10 150023 L 16 16 140 10,0 4,0 6,0 20,0 K10

Stk.
P2-R197-0606-1.0-FK 150053 R 6 6 130 1,0 3,0 4,5 20,0 FK

Stk.
P2-R197-0606-1.0-K10 150055 R 6 6 130 1,0 3,0 4,5 20,0 K10

Stk.
P2-R197-0606-1.5-FK 150059 R 6 6 130 1,5 3,0 4,5 20,0 FK

Stk.
P2-R197-0606-1.5-K10 150058 R 6 6 130 1,5 3,0 4,5 20,0 K10

Stk.
P2-R197-0707-1.0-FK 150061 R 7 7 140 1,0 3,0 4,5 20,0 FK

Stk.
P2-R197-0707-1.0-K10 150060 R 7 7 140 1,0 3,0 5,0 20,0 K10

Stk.
P2-R197-0707-1.5-FK 150065 R 7 7 140 1,5 3,0 5,0 20,0 FK

Stk.
P2-R197-0707-1.5-K10 150064 R 7 7 140 1,5 3,0 5,0 20,0 K10

Stk.
P2-R197-0707-2.0-FK 150071 R 7 7 140 2,0 3,0 5,0 20,0 FK

Stk.
P2-R197-0707-2.0-K10 150070 R 7 7 140 2,0 3,0 5,0 20,0 K10

Stk.
P2-R197-0707-2.5-FK 150073 R 7 7 140 2,5 3,0 5,0 20,0 FK

Stk.
P2-R197-0707-2.5-K10 150072 R 7 7 140 2,5 3,0 5,0 20,0 K10

Stk.
P2-R197-0707-3.0-FK 150075 R 7 7 140 3,0 3,0 5,0 20,0 FK

Stk.
P2-R197-0707-3.0-K10 150074 R 7 7 140 3,0 3,0 5,0 20,0 K10

Stk.
P2-R197-0808-1.0-FK 148074 R 8 8 140 1,0 3,0 6,0 20,0 FK

Stk.
P2-R197-0808-1.0-K10 147075 R 8 8 140 1,0 3,0 6,0 20,0 K10

Stk.
P2-R197-0808-1.5-FK 102514 R 8 8 140 1,5 3,0 6,0 20,0 FK

Stk.
P2-R197-0808-1.5-K10 107256 R 8 8 140 1,5 3,0 6,0 20,0 K10

Stk.
P2-R197-0808-2.0-FK 148838 R 8 8 140 2,0 3,0 6,0 20,0 FK

Stk.
P2-R197-0808-2.0-K10 102515 R 8 8 140 2,0 3,0 6,0 20,0 K10

Stk.
P2-R197-0808-2.5-FK 150155 R 8 8 140 2,5 3,0 6,0 20,0 FK

Stk.
P2-R197-0808-2.5-K10 150094 R 8 8 140 2,5 3,0 6,0 20,0 K10

Stk.
P2-R197-0808-3.0-FK 148073 R 8 8 140 3,0 3,0 6,0 20,0 FK

Stk.
P2-R197-0808-3.0-K10 150156 R 8 8 140 3,0 3,0 6,0 20,0 K10

Stk.
P2-R197-0808-4.0-FK 150163 R 8 8 140 4,0 3,0 6,0 20,0 FK

Stk.
P2-R197-0808-4.0-K10 150157 R 8 8 140 4,0 3,0 6,0 20,0 K10

Stk.
P2-R197-0808-5.0-FK 150164 R 8 8 140 5,0 3,0 6,0 20,0 FK

Stk.
P2-R197-0808-5.0-K10 150158 R 8 8 140 5,0 3,0 6,0 20,0 K10

Stk.
P2-R197-0808-6.0-FK 150168 R 8 8 140 6,0 3,0 6,0 20,0 FK

Stk.
P2-R197-0808-6.0-K10 150162 R 8 8 140 6,0 3,0 6,0 20,0 K10

Stk.
P2-R197-1010-1.0-FK 146667 R 10 10 140 1,0 4,0 5,0 20,0 FK

Stk.
P2-R197-1010-1.0-K10 150169 R 10 10 140 1,0 4,0 5,0 20,0 K10

Stk.
P2-R197-1010-1.5-FK 102516 R 10 10 140 1,5 4,0 5,0 20,0 FK

Stk.
P2-R197-1010-1.5-K10 102517 R 10 10 140 1,5 4,0 5,0 20,0 K10

Stk.
P2-R197-1010-2.0-FK 102518 R 10 10 140 2,0 4,0 5,0 20,0 FK

Stk.
P2-R197-1010-2.0-K10 102519 R 10 10 140 2,0 4,0 5,0 20,0 K10

Stk.
P2-R197-1010-2.5-FK 102520 R 10 10 140 2,5 4,0 5,0 20,0 FK

Stk.
P2-R197-1010-2.5-K10 102521 R 10 10 140 2,5 4,0 5,0 20,0 K10

Stk.
P2-R197-1010-3.0-FK 102522 R 10 10 140 3,0 3,0 6,0 20,0 FK

Stk.
P2-R197-1010-3.0-K10 102523 R 10 10 140 3,0 3,0 6,0 20,0 K10

Stk.
P2-R197-1010-4.0-FK 102524 R 10 10 140 4,0 3,0 6,0 20,0 FK

Stk.
P2-R197-1010-4.0-K10 102525 R 10 10 140 4,0 3,0 6,0 20,0 K10

Stk.
P2-R197-1010-5.0-FK 150172 R 10 10 140 5,0 3,0 6,0 20,0 FK

Stk.
P2-R197-1010-5.0-K10 102526 R 10 10 140 5,0 3,0 6,0 20,0 K10

Stk.
P2-R197-1010-6.0-FK 102527 R 10 10 140 6,0 3,0 6,0 20,0 FK

Stk.
P2-R197-1010-6.0-K10 102528 R 10 10 140 6,0 3,0 6,0 20,0 K10

Stk.
P2-R197-1010-8.0-K10 181506 R 10 10 140 8,0 3,0 6,0 20,0 K10

Stk.
P2-R197-1212-1.0-FK 150174 R 12 12 140 1,0 4,0 5,0 20,0 FK

Stk.
P2-R197-1212-1.0-K10 150173 R 12 12 140 1,0 4,0 5,0 20,0 K10

Stk.
P2-R197-1212-1.5-FK 102529 R 12 12 140 1,5 4,0 5,0 20,0 FK

Stk.
P2-R197-1212-1.5-K10 144974 R 12 12 140 1,5 4,0 5,0 20,0 K10

Stk.
P2-R197-1212-2.0-FK 102530 R 12 12 140 2,0 4,0 5,0 20,0 FK

Stk.
P2-R197-1212-2.0-K10 102531 R 12 12 140 2,0 4,0 5,0 20,0 K10

Stk.
P2-R197-1212-2.5-FK 102532 R 12 12 140 2,5 4,0 5,0 20,0 FK

Stk.
P2-R197-1212-2.5-K10 102533 R 12 12 140 2,5 4,0 5,0 20,0 K10

Stk.
P2-R197-1212-3.0-FK 102534 R 12 12 140 3,0 4,0 6,0 20,0 FK

Stk.
P2-R197-1212-3.0-K10 102535 R 12 12 140 3,0 4,0 6,0 20,0 K10

Stk.
P2-R197-1212-4.0-FK 102536 R 12 12 140 4,0 4,0 6,0 20,0 FK

Stk.
P2-R197-1212-4.0-K10 102537 R 12 12 140 4,0 4,0 6,0 20,0 K10

Stk.
P2-R197-1212-5.0-FK 108659 R 12 12 140 5,0 4,0 6,0 20,0 FK

Stk.
P2-R197-1212-5.0-K10 113737 R 12 12 140 5,0 4,0 6,0 20,0 K10

Stk.
P2-R197-1212-6.0-FK 102538 R 12 12 140 6,0 4,0 6,0 20,0 FK

Stk.
P2-R197-1212-6.0-K10 113738 R 12 12 140 6,0 4,0 6,0 20,0 K10

Stk.
P2-R197-1212-8.0-FK 152355 R 12 12 140 8,0 4,0 6,0 20,0 FK

Stk.
P2-R197-1212-8.0-K10 171208 R 12 12 140 8,0 4,0 6,0 20,0 K10

Stk.
P2-R197-1616-1.0-FK 150179 R 16 16 140 1,0 4,0 5,0 20,0 FK

Stk.
P2-R197-1616-1.0-K10 150183 R 16 16 140 1,0 4,0 5,0 20,0 K10

Stk.
P2-R197-1616-1.5-FK 102539 R 16 16 140 1,5 4,0 5,0 20,0 FK

Stk.
P2-R197-1616-1.5-K10 150185 R 16 16 140 1,5 4,0 5,0 20,0 K10

Stk.
P2-R197-1616-2.0-FK 102540 R 16 16 140 2,0 4,0 5,0 20,0 FK

Stk.
P2-R197-1616-2.0-K10 150186 R 16 16 140 2,0 4,0 5,0 20,0 K10

Stk.
P2-R197-1616-2.5-FK 150180 R 16 16 140 2,5 4,0 5,0 20,0 FK

Stk.
P2-R197-1616-2.5-K10 150187 R 16 16 140 2,5 4,0 5,0 20,0 K10

Stk.
P2-R197-1616-3.0-FK 102541 R 16 16 140 3,0 4,0 6,0 20,0 FK

Stk.
P2-R197-1616-3.0-K10 150188 R 16 16 140 3,0 4,0 6,0 20,0 K10

Stk.
P2-R197-1616-4.0-FK 108785 R 16 16 140 4,0 4,0 6,0 20,0 FK

Stk.
P2-R197-1616-4.0-K10 150189 R 16 16 140 4,0 4,0 6,0 20,0 K10

Stk.
P2-R197-1616-6.0-FK 150182 R 16 16 140 6,0 4,0 6,0 20,0 FK

Stk.
P2-R197-1616-6.0-K10 150190 R 16 16 140 6,0 4,0 6,0 20,0 K10

Stk.
P2-R197-1616-8.0-FK 150193 R 16 16 140 8,0 4,0 6,0 20,0 FK

Stk.
P2-R197-1616-10.0-FK 150192 R 16 16 140 10,0 4,0 6,0 20,0 FK

Stk.
P2-R197-1616-10.0-K10 150191 R 16 16 140 10,0 4,0 6,0 20,0 K10

Stk.
P2-R197-1616-8.0-K10 149257 R 16 16 140 8,0 4,0 6,0 20,0 K10

Stk.
P2-R197-2020-6.0-FK 150195 R 20 20 140 6,0 4,0 6,0 20,0 FK

Stk.
P2-R197-2020-6.0-K10 148935 R 20 20 140 6,0 4,0 6,0 20,0 K10

Stk.
P2-R197-2020-10.0-FK 150194 R 20 20 140 10,0 4,0 6,0 20,0 FK

Stk.
P2-R197-2020-10.0-K10 148936 R 20 20 140 10,0 4,0 6,0 20,0 K10

Stk.
