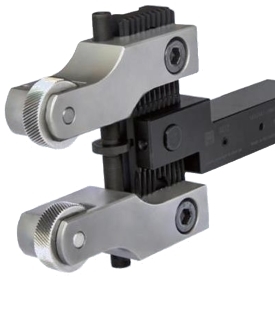

Knurling Tools


zeus® knurling tools offer tool solutions for the diverse applications of knurling technology.

We offer cut knurling tools as well as form knurling tools, that can be used in manual machines as well as sliding head machines and CNC machines.

Download Download: Catalogue Knurling Tools

Online RfQ Online Request for Quotation: Knurling Tools

Rändelwerkzeuge

Form Knurling

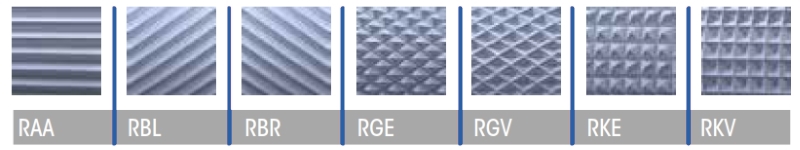

Knurl profiles on DIN 82 workpiece

Knurl profiles on DIN 82 workpiece: Form Knurling

Application:

  • Non-cutting forming
  • Processing of workpieces suitable for cold forming
  • All knurling forms and profiles can be manufactured
  • Suitable for face and knurling within a bore
  • Knurling up to a shoulder is possible
  • Tool can be started at any location on the workpiece

Handling:

  • Only minimal preparation of workpiece required
  • Very easy handling of tool (short setup times)

Features:

  • Material displacement increases the outer diameter of the workpiece
  • The surface is compacted
  • Form knurling of small diameters is possible only to a limited extent

Online Request for Quotation Online Request for Quotation: Form Knurling Tools

Cut Knurling

Knurl profiles on DIN 82 workpiece

Knurl profiles on DIN 82 workpiece: Cut Knurling

Application:

  • Alternative cutting process
  • Material removal at axial feed drive
  • Machining of thin-walled, soft and hard-to-machine materials is possible
  • Only cylindrical workpieces can be machined in axial direction
  • Machining of small diameters is possible
  • Maximum precision and surface quality, therefore suitable primarily for visible knurling
  • A plunge cut is necessary for applying the tool in the middle area of the workpiece
  • Knurling up to a shoulder is not possible

Handling:

  • Requires precise tool adjustment and fine adjustment
  • Requires precise preparation of the workpiece

Features:

  • Minimal change in the outer diameter
  • Minimal surface compaction
  • Lower strain on machine than in form knurling
  • Minimum pressure on the workpiece and machine

Online Request for Quotation Online Request for Quotation: Cut Knurling Tools

Knurling tools range
