Machining Solutions for Medical Technology


The requirements related to the production of medical components are progressing continuously. Thus, the demands regarding precision and profitability in the medical industry are increasing constantly.

Since decades we, at Dieterle, have been designing and producing precision tools for machining medical components. In close cooperation with our customers we have developed permanently new solutions for the special demands of medical technology.



We offer comprehensive machining solutions for the special requirements of medical technology:

For the precise production of external threads by means of the whirling technology in the medical industry

Thread whirling tools


External threads

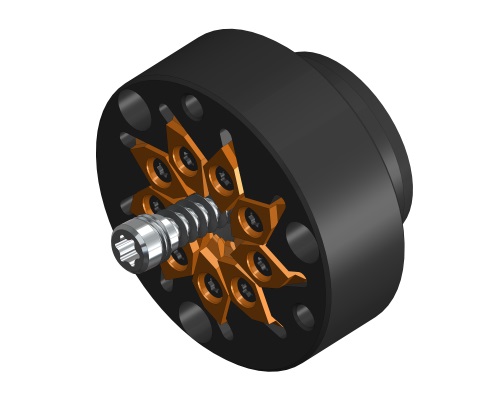

For the precise production of external threads by means of the whirling technology we recommend our system ROTOWIBEX.

Außengewindewirbelwerkzeuge für die Medizintechnik

We offer a wide range of external thread whirling tools for all common machine types and thread whirling units.

Leading producers of bone screws rely on the precision of ROTOWIBEX.

Learn more about our external thread whirling tools.

Internal threads

For the precise production of internal threads by means of the whirling technology we recommend our system MINIWIBEX.

Innengewindewirbelwerkzeuge für die Medizintechnik

Internal threads in the Ø-range M0.7 and smaller can be realized with MINIWIBEX. Our internal thread whirling tools are manufactured with single and multi-tooth profiles according to your specifications.

With MWE-VT tools of the MINIWIBEX system, internal thread whirling without predrilling is possible. MWE-VT tools can create a drill hole and a thread in only one operation and thus save a tool place in the machine.

Learn more about our internal thread whirling tools.

Online RfQ Online Request for Quotation: System MINIWIBEX Internal Thread Whirling Tools

Thread chasing tools

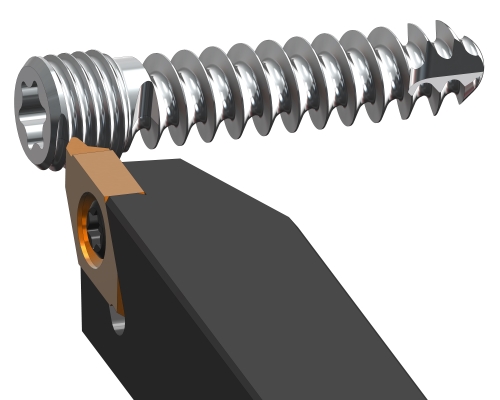

External threads

For the flexible production of external threads we recommend our thread chasing tools.

Außengewindestrehlwerkzeuge für die Medizintechnik

We offer a wide range of partial and full profile inserts for each of our tool holder systems. Our range does not only include external thread chasing tools for ISO standard threads, on demand we can also realize trapezoidal, round, buttress, 55°-inch, as well as further special treads.

Learn more about our external thread chasing tools.

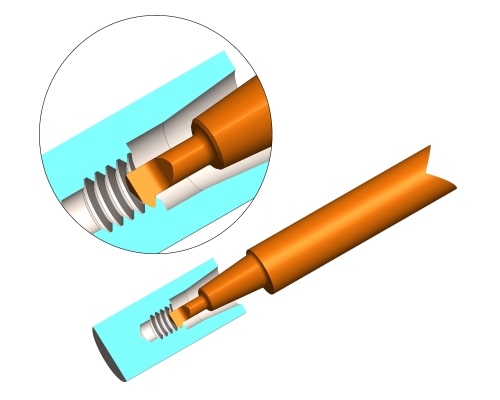

Internal threads

For the flexible production of internal threads we recommend our system MINIFIX.

Inengewindestrehler MINIFIX MFE-T für die Medizintechnik

The brilliantly simple “V”-shaped clamping system guarantees a highly precise placement on center height as well as outstanding tool change accuracy. You can chase internal threads from Ø 1.1 mm with MFE-T standard tools.

Learn more about our internal thread chasing tools.

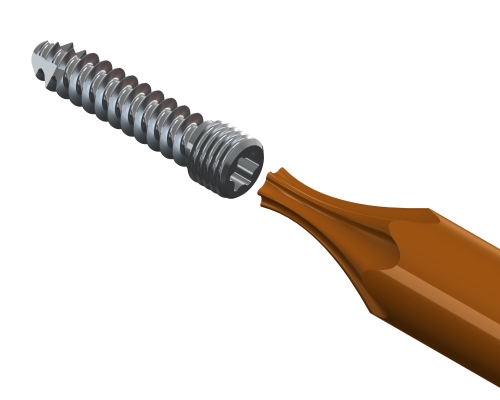

Broaches / punches


For the economical and productive broaching of your workpiece geometries, we recommend our broaches / punches.

In addition to Torx or hexagonal standard tools, we can manufacture any symmetrical punch shape according to your specifications.

Learn more about our special broaches / punches.

We also offer a wide range of broaching tool holders with corresponding push broaches in various standard versions.

Learn more about our standard broaches / punches.

Profilstempel für die Medizintechnik

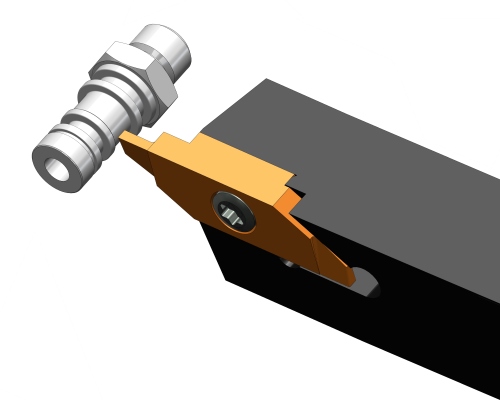

Turning tools for Swiss type machines


For the stable production of small workpieces on Swiss type machines, we recommend our system SSXA.

For decades, our customers have relied on the stability and precision of our versatile tools for Swiss type machines. SSXA is the first choice for small diameters with a cutting width starting from 0.8 mm in the standard program from stock. We can quickly realize special tools based on the SSXA system with even narrower cutting widths and geometries according to your individual specifications.

Learn more about our turning tools for Swiss type machines.

Online Request for Quotation Online Request for Quotation: System SSXA Turning Tools for Swiss Type Machines

SSXA Langdrehwerkzeuge für die Medizintechnik

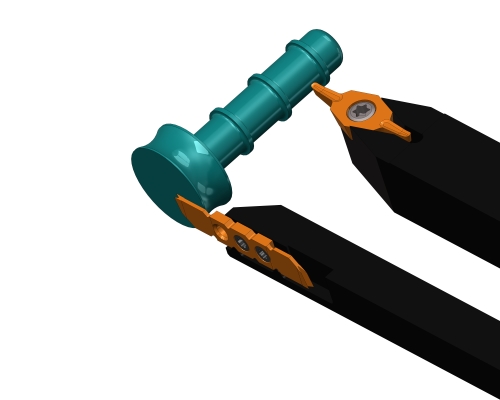

Plastic machining tools


For the very special demands of machining plastics we recommend our plastic machining tools.

We are the only supplier on the market to offer you a special tool system for machining plastics as standard tools from stock. This unique system offers many advantages for machining plastics compared to conventional tools. Special insert profiles for plastic machining can also be flexibly manufactured according to your specifications.

Learn more about our plastic machining tools.

Online Request for Quotation Online Request for Quotation: Plastic Machining Tools

Kunststoff-Bearbeitungswerkzeuge für die Medizintechnik

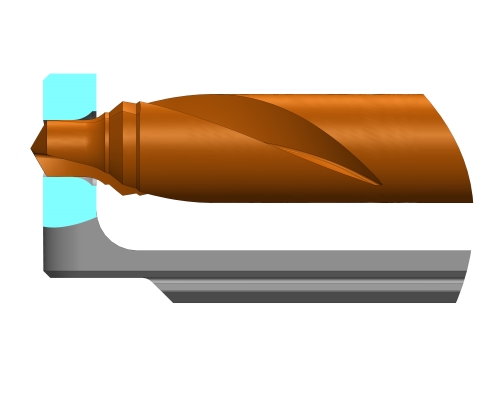

Form drills


For special drilling demands we recommend our form drills.

With the help of our precision tool grinding machines, we can produce tools in solid carbide as well as HSS with µ-precision. We offer, to name a few, step drills, flat and cannon drills as well as reamers, according to your individual specifications. Both large and small series can be realized in a profitable way.

Learn more about our form drills.

Formbohrer für die Medizintechnik

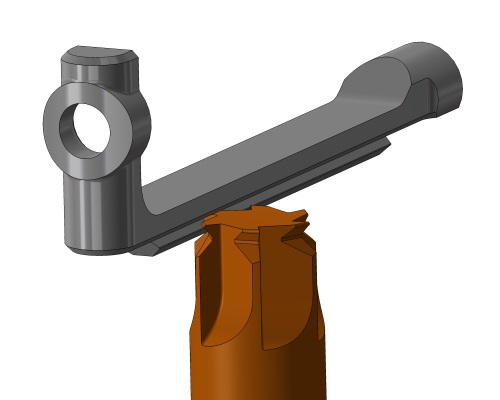

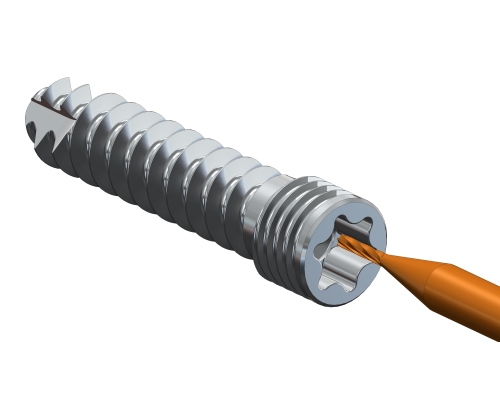

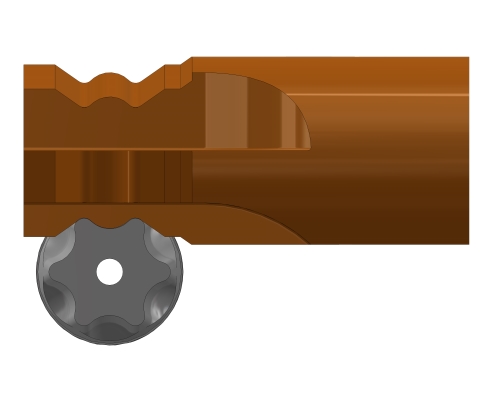

Micro mills


For all micro milling demands we recommend our micro mills.

Our extensive range of high-performance solid carbide milling tools is ideally suited for all applications in the micro range. In addition to standard tools, we can also quickly supply special tools in this area according to your individual specifications.

Learn more about our micro mills.

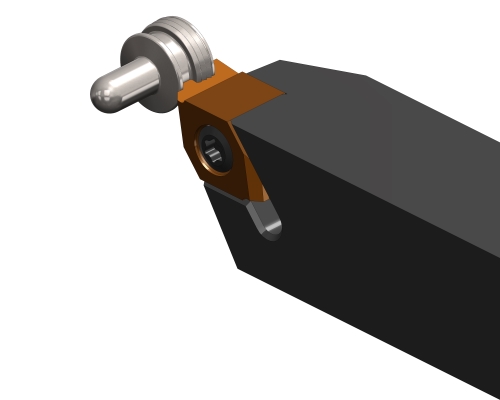

Form grooving tools


For the cost-saving production of filigree turned parts we recommend our system ANF.

This popular form grooving system is universally applicable and, in addition to standard inserts, also available with customer-specific profiled inserts. Compact shank dimensions from 8x8 and a grooving width from 0.65 mm in the standard program ex stock characterize this system. Special tools based on the ANF system are possible even smaller according to your requirements.

Learn more about our form grooving systems.

Online Request for Quotation Online Request for Quotation: System ANF

Formstechwerkzeuge für die Medizintechnik

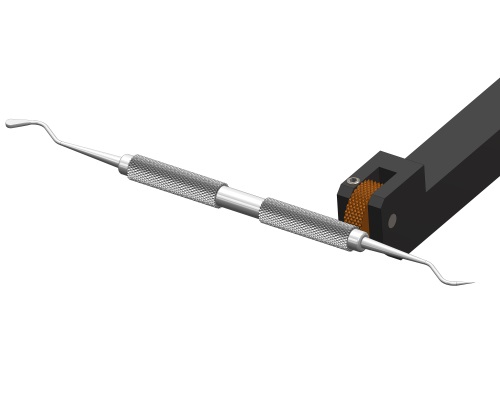

Knurling tools


For the diverse applications of the knurling technology we recommend our zeus® knurling tools.

We offer cut knurling tools as well as form knurling tools, that can be used in manual machines as well as sliding head machines and CNC machines.

Learn more about our knurling tools.

Online Request for Quotation Online Request for Quotation: Knurling Tools

Rändelwerkzeuge für die Medizintechnik

The following PDF download is available:

Machining Solutions for Medical Technology

Download ⇓
