Form Drills / Form Mills


We can quickly realize a variety of form drills and form mills according to your individual requirements. We adapt the technical parameters of our form tools to your workpiece and the material to be machined. This allows you to combine several work steps into one when manufacturing your workpiece and reduce costs.

  • Cost-effective machining
  • Shorter tool changing times
  • Higher process reliability
  • Available in solid carbide and HSCO
  • Available with internal cooling
  • Carbide tipped available

Form Drills


We can quickly realize a variety of form drills according to your drawings:

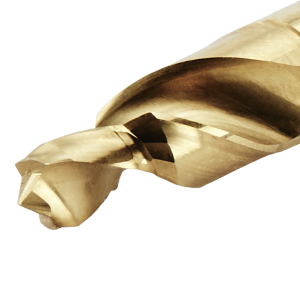

Step drills
Stufenbohrer
  • For all materials
  • Spiraled
  • Slotted straightly
  • Solid drilling
  • 2  cutting edges
  • Available with indexable inserts
    (System DRILLWEX)

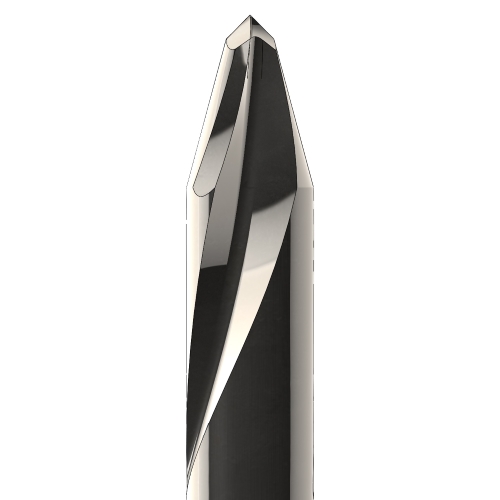

Center drills
Zentrierer
  • For all materials
  • Spiraled
  • NC centre drills
  • Pointed
  • 60°/90°/120°
  • DIN 333
  • 2 cutting edges
  • Cut chisel edge
  • Relief ground

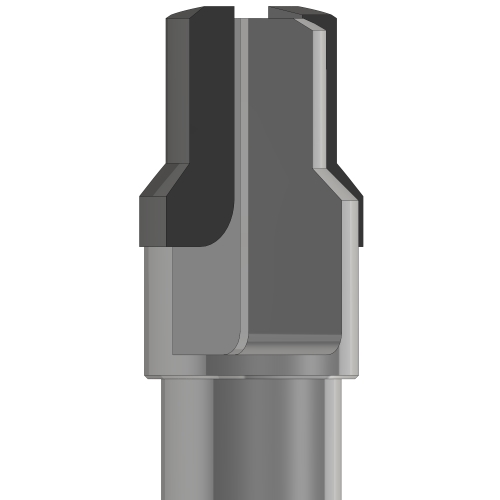

Rebore drills
Aufbohrer
  • For all materials
  • Spiraled
  • Slotted straightly
  • 2 and more cutting edges
  • Available with indexable inserts
    (System DRILLWEX)
Flat drills
Flachbohrer
  • For non-ferrous metals
  • Slotted straightly
  • Solid drilling
  • 2 cutting edges
  • Available with indexable inserts
    (System DRILLWEX)
Reamers
Reibahle
  • For all materials
  • Slotted straightly
  • 4 and more cutting edges
  • Ohne Drall
  • Rechts/Links Drall
  • Mit Stufe
Spot facer
Plansenker
  • For non-ferrous metals
  • Spiraled
  • Slotted straightly
  • 2 cutting edges
  • Available with indexable inserts
    (System DRILLWEX)
Gun drills
Kanonenbohrer
  • For all materials
  • Spiraled
  • Slotted straightly
  • Mit Stufen
  • 1 cutting edge
Hollow drills
Hohlbohrer
  • For non-ferrous metals
  • Slotted straightly
  • Solid drilling
  • 1 cutting edge

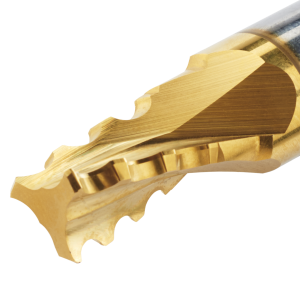

Form Mills


We can quickly realize a variety of form mills according to your drawings:

Form end mills
Schaftformfräser

Circular mills
Zirkularformfräser

Profile mills
Profilfräser

T-slot cutters
T-Nutenfräser

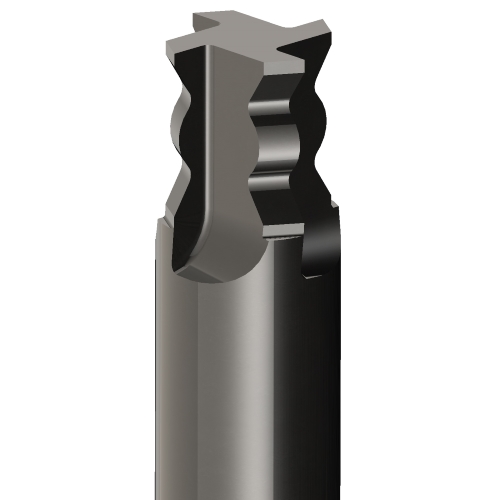

Shanked form mills
for Torx profiles
Schaftformfräser für Torx-Profile

Micro thread milling cutters
Micro-Gewindezirkularfräser


Coating and Regrinding Service


Use our coating service for optimal service life. Our form drills and form mills are available in a large selection of coatings. We are able to promptly realize the optimal coating for every application and would be happy to advise you.

For your used tools we offer a regrinding service.

Customized according to drawing


Benefit from our decades of experience in the production of form drills and form mills and develop together with our competent designers the ideal tools for the most efficient manufacturing process based on your circumstances.

Simply send us your drawing here:

Your drawing:
Your message:
First name:
Last name:
Company: *
Address:
ZIP code:
Town:
Phone:
E-Mail: *
Privacy: *

Ich habe die Datenschutzerklärung zur Kenntnis genommen und bin damit einverstanden, dass die von mir angegebenen Daten elektronisch erhoben und gespeichert werden. Meine Daten werden dabei nur streng zweckgebunden genutzt. Diese Einwilligung kann ich jederzeit durch Nachricht an info@dieterle-tools.de widerrufen.

Security code: * Please enter the result for seven times seven with numerals:
The * marked fields are required.

In addition to the form drills and form mills listed above, we naturally also have standard drills and mills in our range.
