Machining Solutions for Plastics Technology

Traditional materials are increasingly being replaced by engineering plastics with customized properties. For technical as well as economic reasons, by far not all plastic parts can be manufactured by injection molding. This is why plastic machining is becoming more and more important and the turned parts industry is constantly facing new challenges in terms of precision and economy. We have been meeting these challenges for years and offer a special tool system for machining plastics.

It takes a lot of experience and the right tools to achieve optimal results when machining plastics. Similar to the processing of different metals, the special features of the individual materials must be taken into account when processing different plastics in order to determine the optimal cutting tools and parameters.

We offer comprehensive machining solutions for the special requirements of plastics technology:

Standard Tools for Machining Plastics

As only supplier on the market, we offer a special tool system for machining plastics as standard tools from stock. This unique system offers many advantages for machining plastics compared to convenient tools:

Extremely sharp cutting edges
Very good chip control
Individual design of the blade and cutting geometry
Especially polished sections for thermosetting plastics, thermoplasts, elastomers, rubber, PTFE, etc. (e.g. to avoid burrs)
Chiplessly parting off elastomers

Chipless Cutting with the KBS System

Machining: Material: Workpiece:	Chipless cutting witht KP-2-9-RX-A-UFK2 Polyurethane Sealing washers
Extremely sharp cutting edges enable chipless cutting of elastomers Little heat development and no sticking of the material Very good surfaces on the workpieces

The following indexable insert types are available for chipless cutting with the KBS system:

KP-12°

The entire chamfer concentrates on the cutting point of the Dieterle 12° cutting inserts. All polished facets converge to this extremely sharp point, through which soft plastics offer almost no resistance.

KBS 2-7 l t_max 10mm
KBS 2-9 l t_max bis 18mm

KP-VG

Dieterle VG cutting inserts is the basic form for chipless processing. The polished cutting-off blade is super sharp. This allows it to glide quickly and with low heat generation through soft plastics.

KBS 2-7 l t_max 10mm
KBS 2-9 l t_max bis 18mm

KP-RX

Dieterle RX cutting-off for plastic processing provides a smooth cut. The cutting effect is distributed radially over a large portion of the polished blade.

KBS 2-7 l t_max 10mm
KBS 2-9 l t_max bis 18mm

Plastic machining with the KP-VCGT System

Machining: Material: Workpiece:	Turning with KP-VCGT-11-S-K10, Chipless cutting witht KP-2-7-12°-12-B-UFK2 ZX-100 Sealing washers
Circumferentially ground indexable inserts with polished chip breaker Good chip removal with little heat development Very good surfaces on the workpieces

The following types of indexable inserts are available for machining plastics with the KP-VCGT system:

Special Tools for Machining Plastics

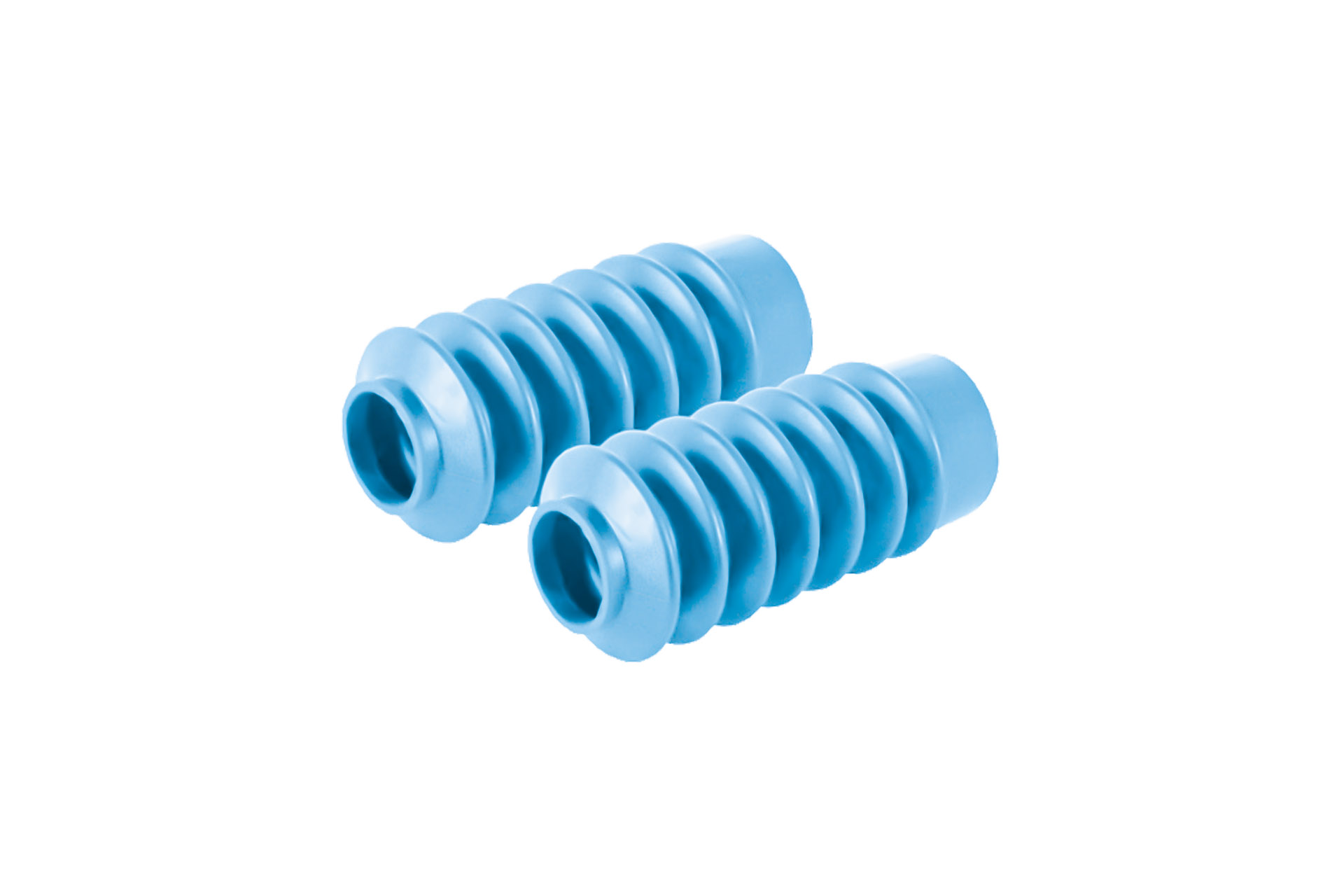

In addition to our standard tools for machining plastics, we can realise a large number of special tools for you according to your individual requirements. With our special tools for machining plastics, bellows, special seals and many other plastic turned parts can be manufactured precisely and efficiently. We are happy to help!
