System EcoStar
The sintered insert seat in X-form makes our System EcoStar a very economical solution for turning operations.
Download:

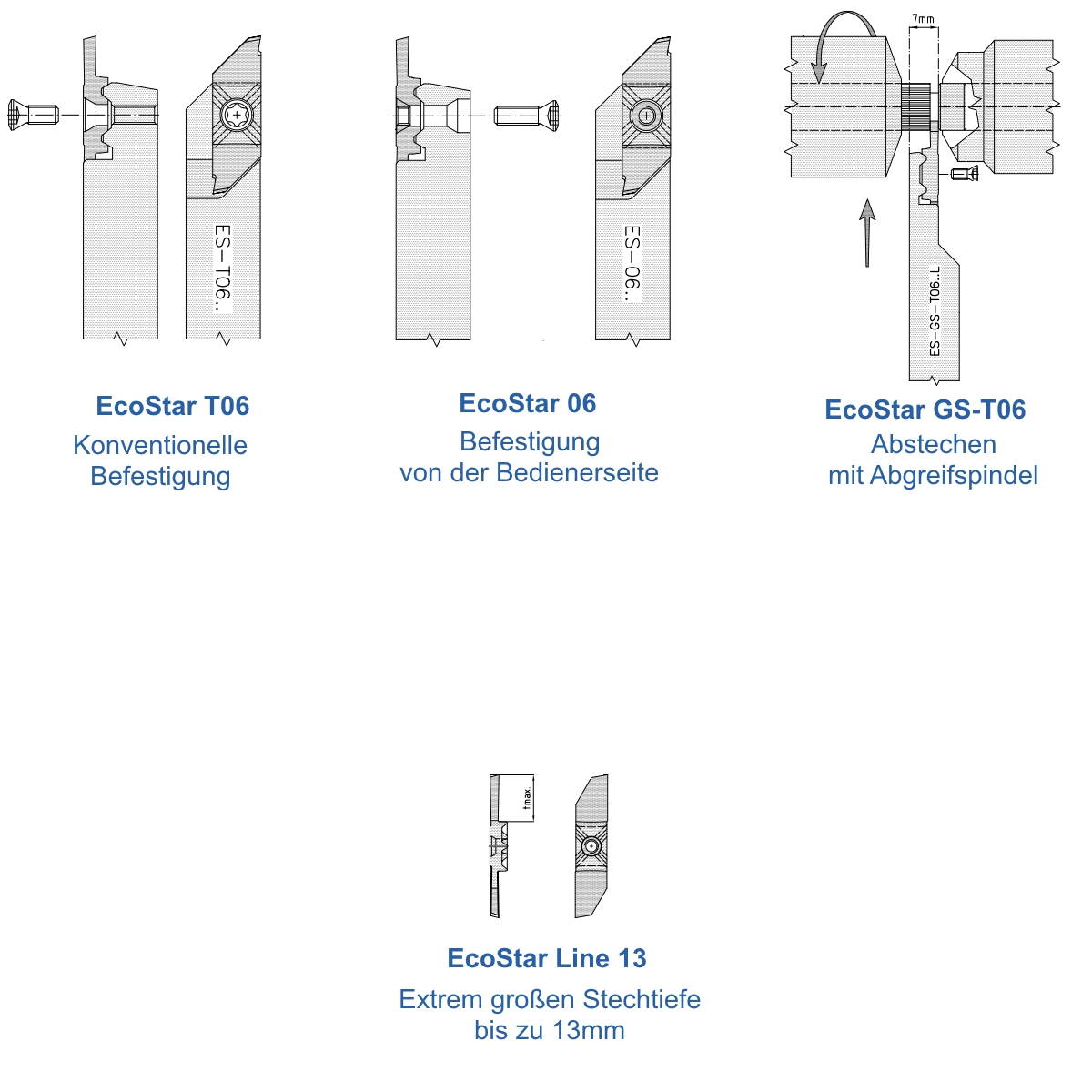

System EcoStar Tool Holders:
Tool holder shank sizes from 8x8 to 20x20
| EcoStar T06: | Tool holders with conventional fixing for inserts with a max. cutting depth of up to 6.2 mm – available with or without internal coolant supply |
| EcoStar 06: | Tool holders with fixing on the control side for inserts with a max. cutting depth of up to 6.2 mm – available with or without internal coolant supply |
| EcoStar GS-T06: | Parting off with subspindle for inserts with a max. cutting depth of up to 6.2 mm – the tampered tool holders enable machining closer to the main spindle, especially with bigger shank sizes, and thus increase the stability; when machining short turned parts, the tampered tool holders furthermore guarantee a sound take-up by the subspindle |
| As standard tools from stock only available until the end of 2022: | |
| EcoStar T13: | Tool holders with conventional fixing for inserts with extremely large cutting depths of up to 13 mm – available with or without internal coolant supply |
| EcoStar GS-T13: | Parting off with subspindle for inserts with extremely large cutting depths of up to 13 mm (tampered tool holders) |
| EcoStar 13: | Tool holders with fixing on the control side for inserts with extremely large cutting depths of up to 13 mm – available with or without internal coolant supply |
|
SALE: 30% discount on all EcoStar Line 13 standard tools in stock until 31.12.2022 Successor products for EcoStar Line 13: SSXA-T08 |
|

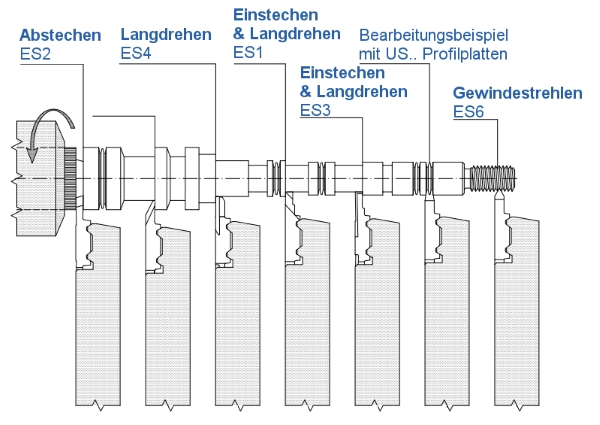

System EcoStar Indexable Insert Types: ES Inserts
| ES2: | Parting off |
| ES4: | Turning |
| ES1: | Grooving and turning |
| ES3: | Grooving and turning |
| US..: | Profile inserts for various applications |
| ES6: | Thread chasing |
Customized special designs, also special coatings, can be realised quickly.Please contact us.
