Single Toothed Slotting Tool MFE-ST
Application Example Single Toothed Slotting Tool MFE-ST

Single Toothed Broaching Tools MFE-ST

Precisely Machining Spanner Flats

By means of these new tools spanner flats are broached individually. Besides spanner flats with standard wrench sizes also spanner flats with special wrench sizes can be realised without the need for special tools. For each of our MFE-ST broaching tools a range of the width across flats (AF) is stated, which you can adjust flexibly based on your individual requirements. As the tolerance zone of the width across flats can be influenced, the process stability can be increased significantly.

Suitable Adapters:

MINIFIX Adapters

MFE-ST single toothed broaching tools for the production of square spanner flats or customer-specific special profiles are available on demand.

Moreover, we can offer you further coatings or tools without coating.

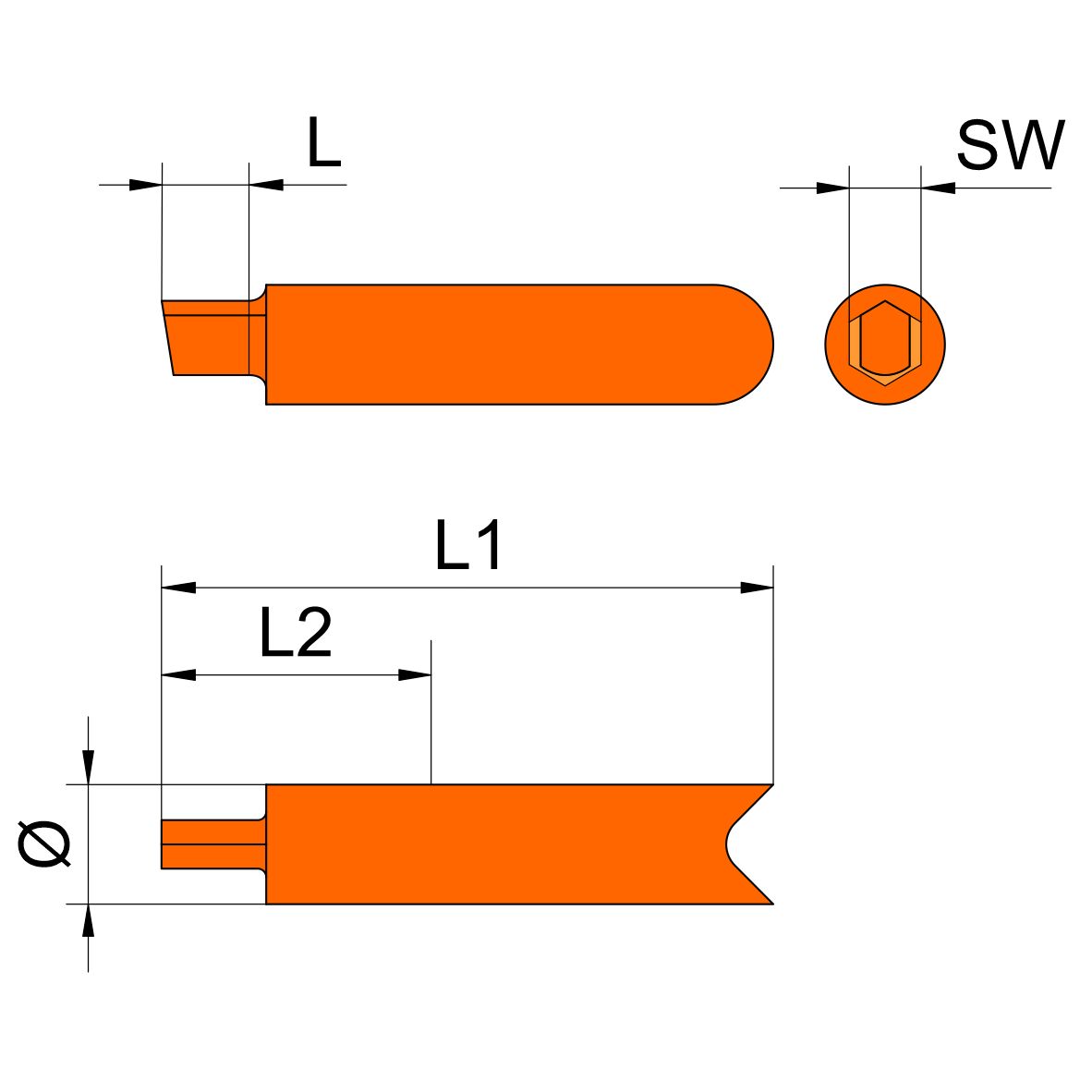

Description Article No. SW L Ø L1 L2 Coating In cart
MFE-ST-6K-SW1.5-BD3 177499 1,4-1,6 2 6 30 11,1 TiAlN

Pc.
MFE-ST-6K-SW2.0-BD3 177500 1,9-2,2 3 6 30 11,1 TiAlN

Pc.
MFE-ST-6K-SW2.5-BD3 177501 2,4-2,7 3 6 30 11,1 TiAlN

Pc.
MFE-ST-6K-SW3.0-BD3 177502 2,9-3,4 3 6 30 11,1 TiAlN

Pc.
MFE-ST-6K-SW3.5-BD3 177504 3,4-4,3 3 6 30 11,1 TiAlN

Pc.
MFE-ST-6K-SW4.0-BD3 177509 3,9-4,6 4 6 30 11,1 TiAlN

Pc.
MFE-ST-6K-SW5.0-BD3 177510 4,9-5,9 5 6 30 11,1 TiAlN

Pc.
