Zeus Cut Knurling Tool 231

Perfect efficiency due to modular design, convincing process reliability due to sturdy construction

  • Scaling and positioning aids
  • Adjusting spindle for fine adjustment of the knurl profile
  • Set screws in shank for clearance angle correction
  • Coated carbide bearing bushes for improved antifrictional property
  • Modular shank design: Shank size 10 x 10 mm optionally adaptable

Other variants available on request.

Suitable knurling wheels:

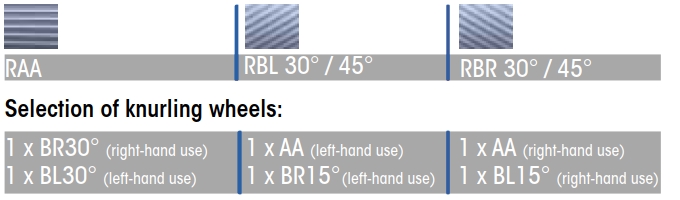

Knurling profiles on DIN 82 workpiece:

Feed knurling

Knurling profiles on DIN 82 workpiece: Feed knurling

Knurling Process and Tool Characteristics

Tool Selection





Description Article No. Working area Ø a a Ø b c d e f x Knurling wheels (Ø x b x b) In cart
231-10M150408-VS-A 31002739 3-50 10 - 10 103,5 36,2 23,9 25,3 1,4 15 x 4 x 8

Pc.
231-12M150408-VS-A 31002740 3-50 12 - 12 103,5 36,2 23,9 25,3 1,4 15 x 4 x 8

Pc.
231-16M150408-VS-A 31002741 3-50 16 - 16 103,5 36,2 23,9 29,3 1,4 15 x 4 x 8

Pc.
231-20M250608-B 31002652 10-300 20 - 20 130,8 35 50,8 36,5 3,7 25 x 6 x 8

Pc.
231-25M250608-B 31002445 10-300 25 - 20 130,8 35 50,8 40 3,7 25 x 6 x 8

Pc.
