Zeus Form Knurling Tool 131

Ideal for all knurling profiles, features exceptionally easy handling

  • All holders equipped with ClickPin system – for fast retooling of the knurling wheels
  • Set screws in shank for clearance angle correction
    Carbide pin
  • Modular shank design: Shank size 10 x 10 mm optionally adaptable

Other variants available on request.

Left-hand version of all shank dimensions available on request.



Suitable knurling wheels:

Knurling profiles on DIN 82 workpiece:

Plunge knurling

Knurling profiles on DIN 82 workpiece: Plunge knurling

Feed knurling

Knurling profiles on DIN 82 workpiece: Feed knurling

Knurling Process and Tool Characteristics

Tool Selection

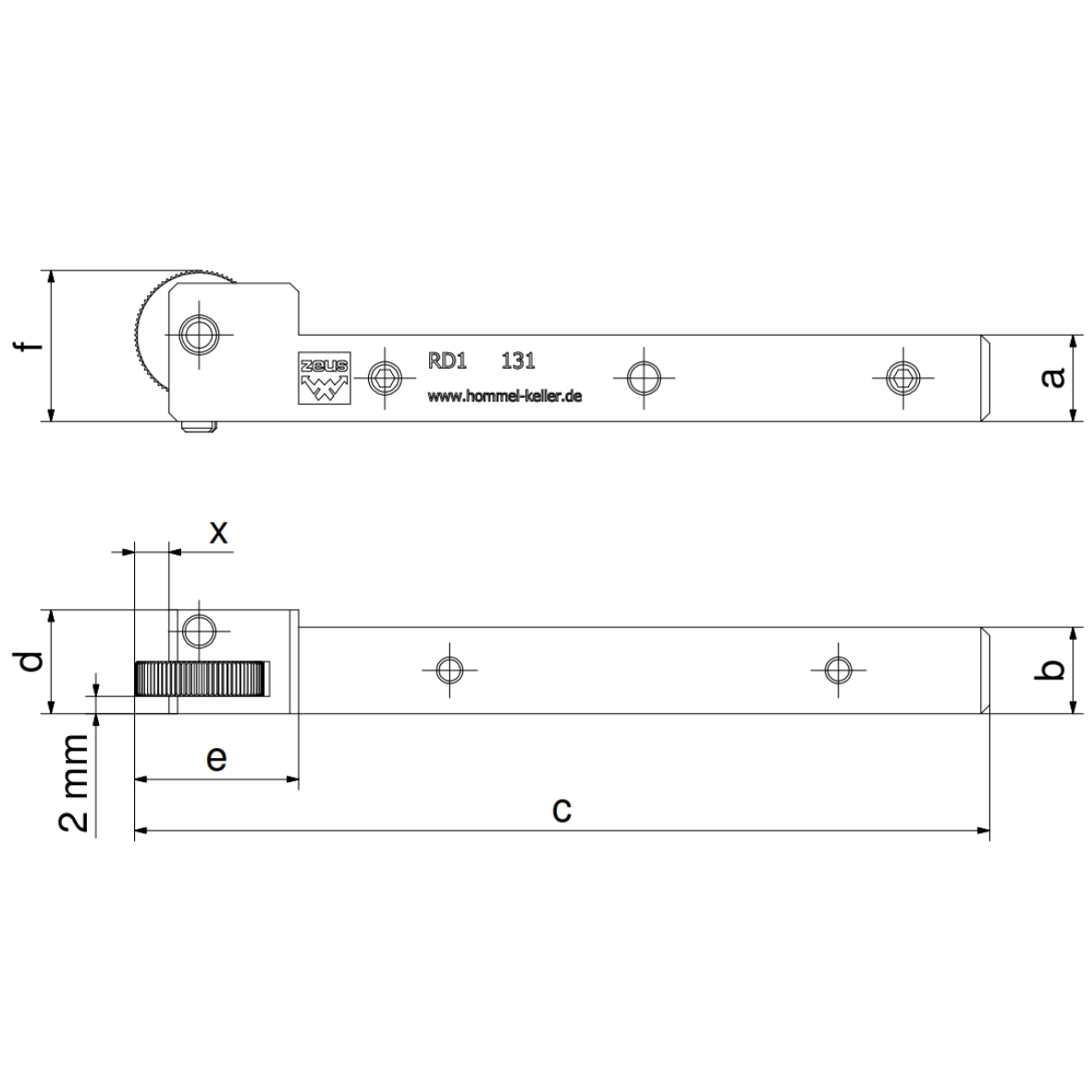

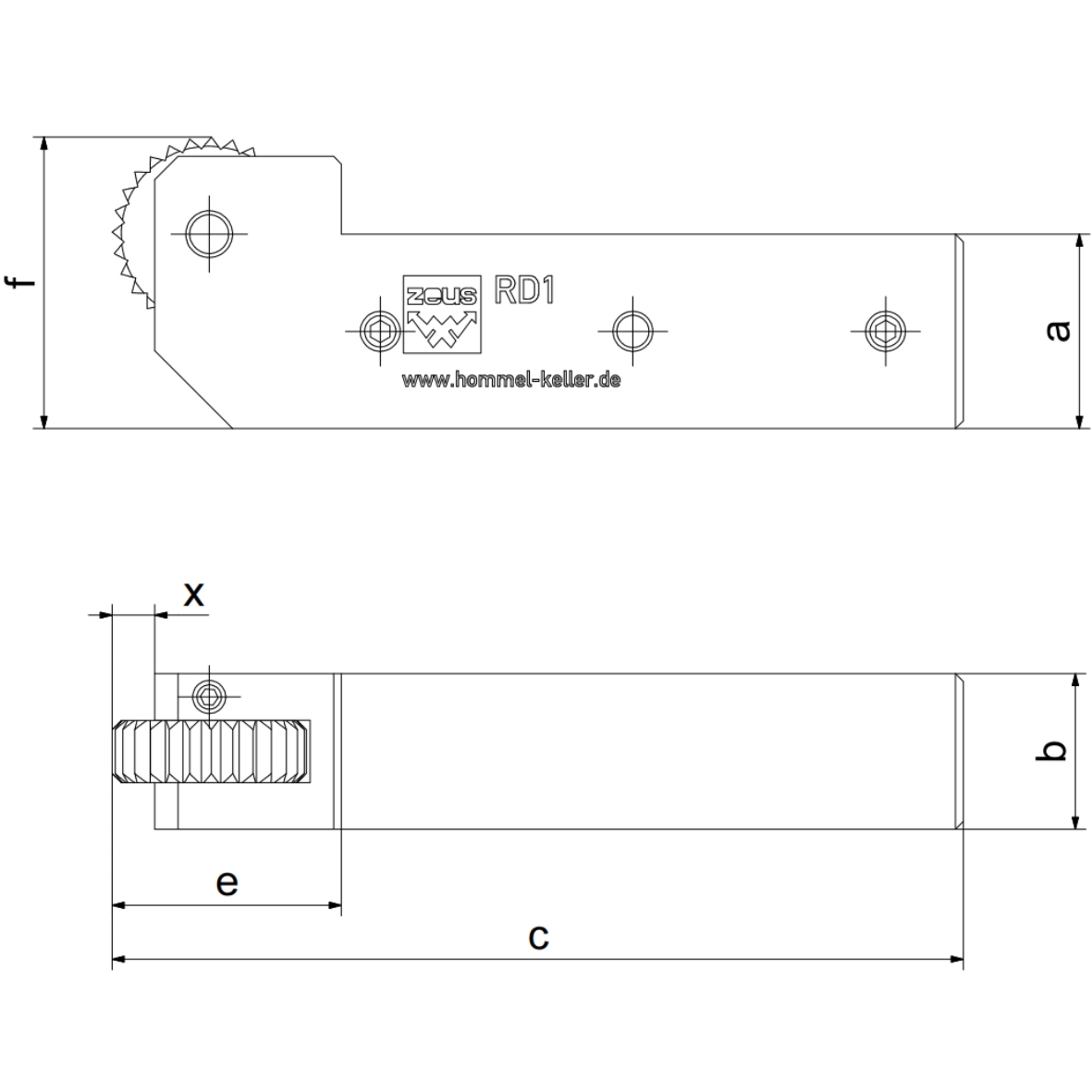

Description Article No. Working area Ø a b c d e f x Knurling wheels (Ø x b x b) In cart
131-10R150404-VS-A 31002706 3-50 10 10 99 12 19 17,5 1,5 / 4 10 / 15 x 4 x 4

Pc.
131-12R150404-VS-A 31002707 3-50 12 12 99 12 19 19,5 1,5 / 4 10 / 15 x 4 x 4

Pc.
131-16R150404-VS-A 31002708 3-50 16 16 99 19 19 23,5 1,5 / 4 10 / 15 x 4 x 4

Pc.
131-20U250806-A-Z 31000714 8-200 20 20 109,5 - 29,5 32,5 3 / 5,5 20 / 25 x 8 x 6

Pc.
131-25U250806-A-Z 31000715 8-200 25 20 109,5 - 29,5 37,5 3 / 5,5 20 / 25 x 8 x 6

Pc.
