Zeus Form Knurling Tool 132

Ideal for all knurling profiles and applications up to a shoulder

  • Knurling wheel fixed by means of carbide collar studs
  • Set screws in shank for clearance angle correction
  • Modular shank design: Shank size 10 x 10 mm optionally adaptable

Other variants available on request.

Left-hand version of all shank dimensions available on request.



Suitable knurling wheels:

Knurling profiles on DIN 82 workpiece:

Plunge knurling

Knurling profiles on DIN 82 workpiece: Plunge knurling

Feed knurling

Knurling profiles on DIN 82 workpiece: Feed knurling

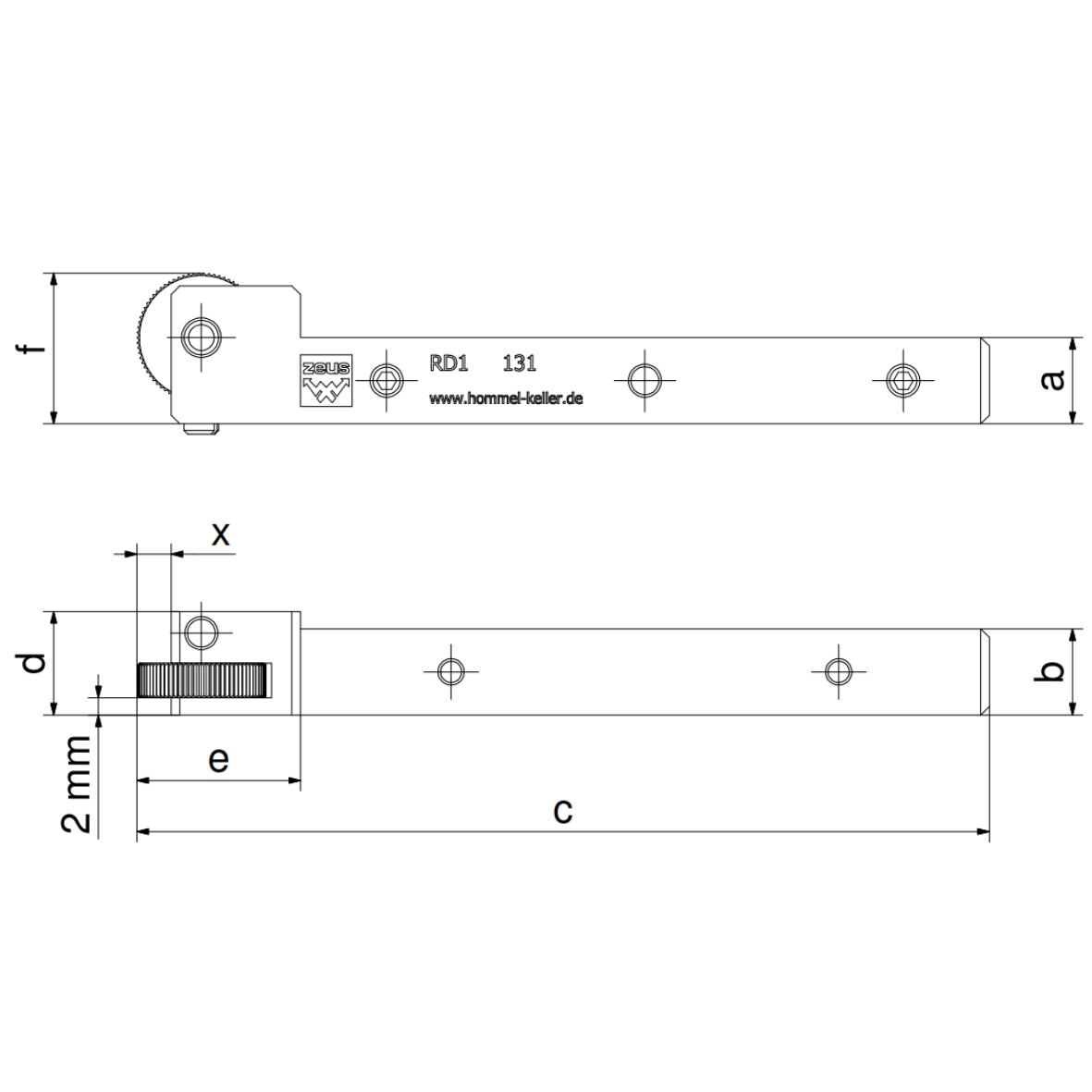

Description Article No. Working area Ø a b c d e f x Knurling wheels (Ø x b x b) In cart
132-10R150606A11-VS-A 31002726 3-50 10 10 101 19 21 18 1,3 15 x 6 x 6A11

Pc.
132-12R150606A11-VS-A 31002227 3-50 12 12 101 19 21 20 1,3 15 x 6 x 6A11

Pc.
132-16R150606A11-VS-A 31002729 3-50 16 16 101 19 21 24 1,3 15 x 6 x 6A11

Pc.
132-20U200806A13-A 31000742 8-200 20 20 105,5 24 25,3 30 1,3 20 x 8 x 6A13

Pc.
132-25U200806A13-A 31000743 8-200 25 20 105,5 24 25,3 30 1,3 20 x 8 x 6A13

Pc.
