Excellent for axial profiling, features flexible centring

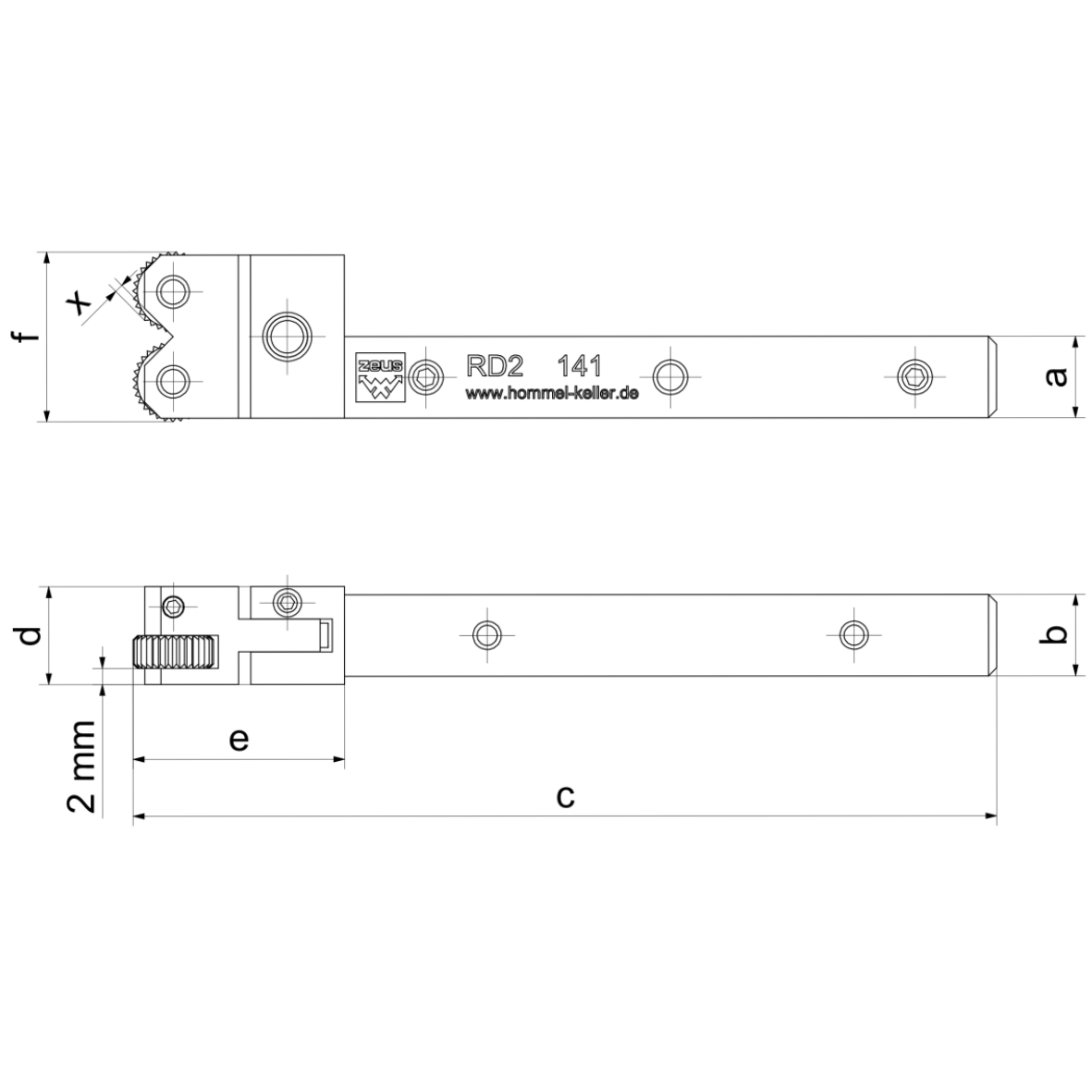

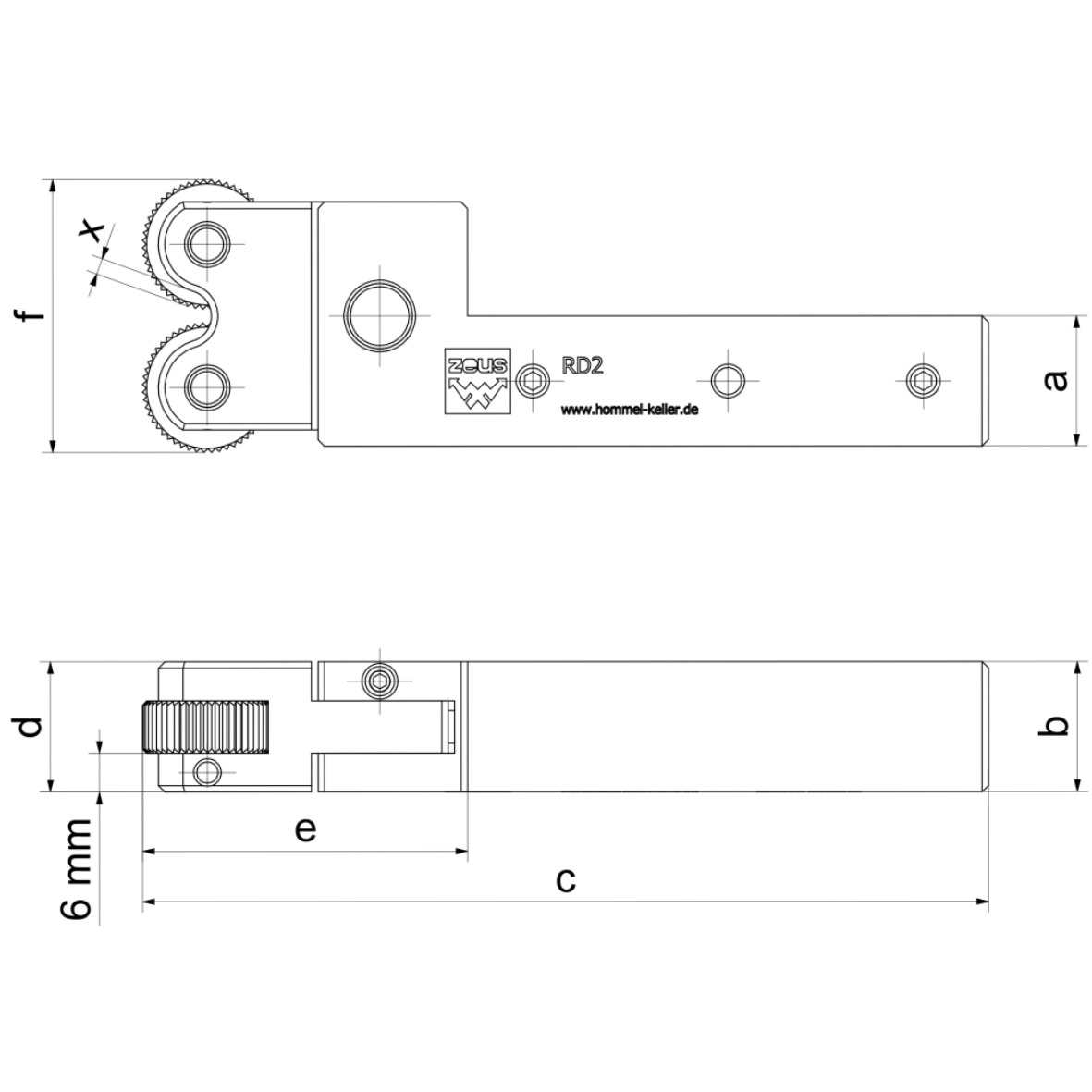

• Shank size 20 x 20 mm and 25 x 25 mm with ClickPin system – for fast retooling of the knurling wheels
• Modular design: Tool can be used as righthand and lefthand version
• Knurling head with flexible centring
• Set screws in shank for clearance angle correction
• Carbide pins
• Modular shank design: Shank size 10 x 10 mm optionally adaptable

Other variants available on reques.

Tools of series 141 can be converted to series 142 and vice versa by replacing the knurling head, with a shank size of 16 x 16 mm or larger.

Suitable knurling wheels:

• Knurling Wheels (Non-Cutting Process)

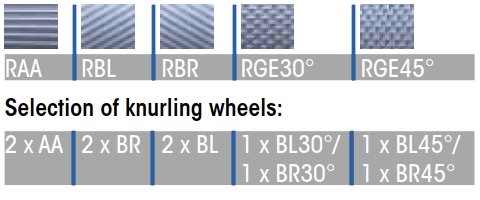

Knurling profiles on DIN 82 workpiece:

Plunge/feed knurling
