Zeus Form Knurling Tool 161

Ideal for very small workpiece diameters, features gentle tangential profiling

  • Knurl holder is easily adjustable to workpiece diameter by means of synchronous spindle
  • Set screws in shank for clearance angle correction
  • Carbide pins with surface secured by set screw
  • Modular shank design: Shank size 10 x 10 mm optionally adaptable

Other variants available on request.

Left-hand version of all shank dimensions available on request.

Suitable knurling wheels:

Knurling profiles on DIN 82 workpiece:

Plunge/feed knurling

Knurling profiles on DIN 82 workpiece: Plunge/feed knurling

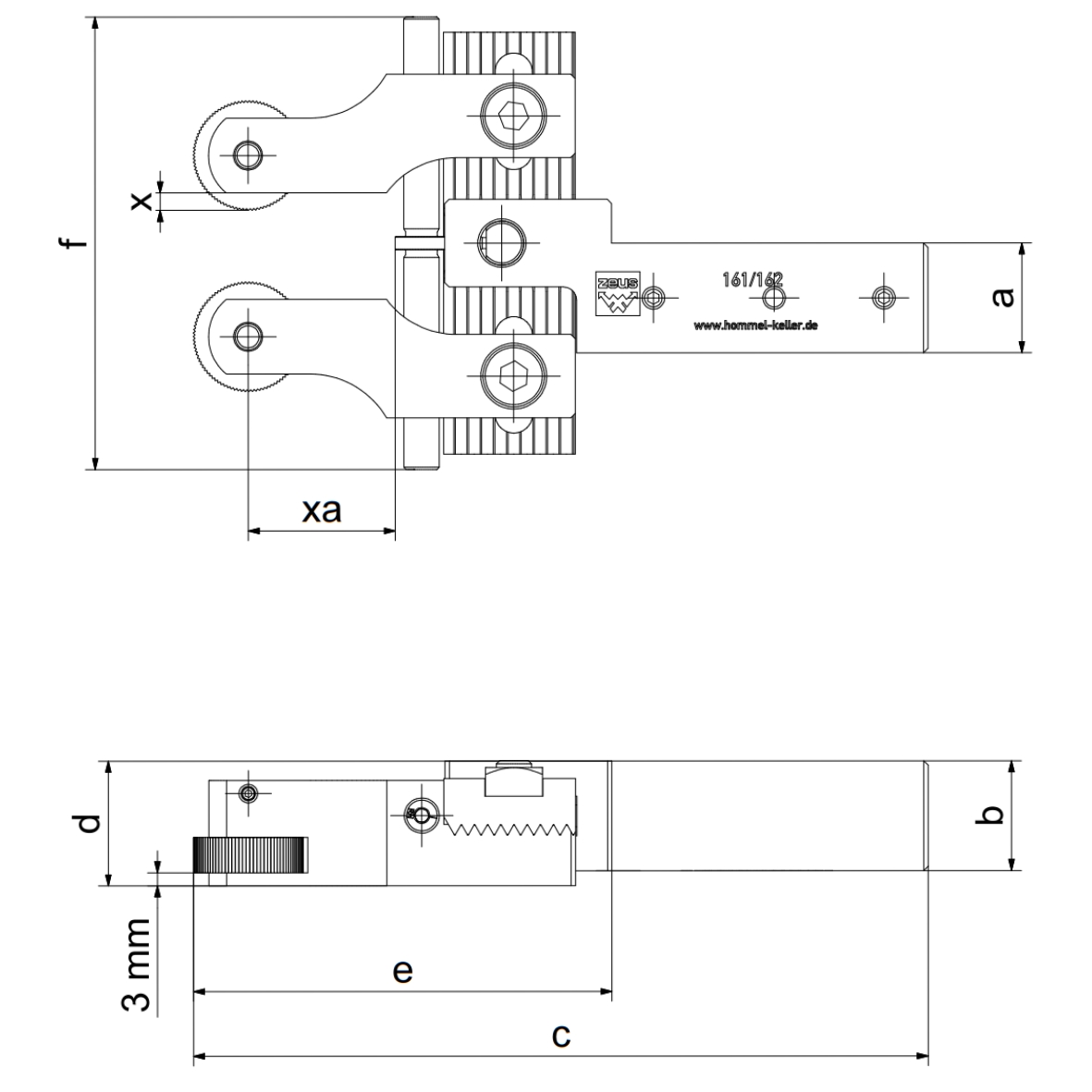

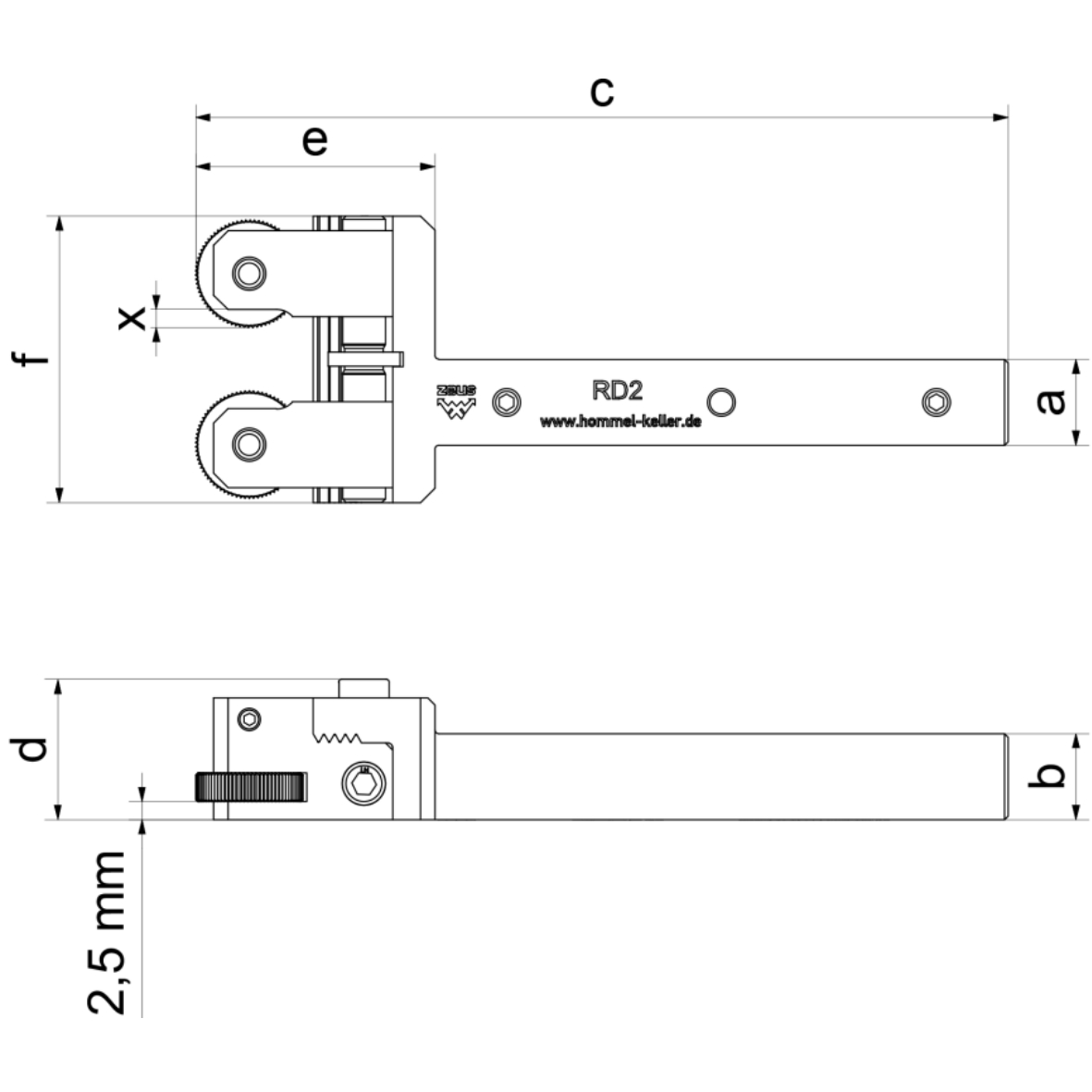

Description Article No. Working area Ø a b c d e f xa x Knurling wheels (Ø x b x b) In cart
161-10R150404-VS-A 31002719 0-15 10 10 113,4 19,6 33,4 40 - 2,5 15 x 4 x 4

Pc.
161-12R150404-VS-A 31002722 0-15 12 12 113,4 19,6 33,4 40 - 2,5 15 x 4 x 4

Pc.
161-16R150404-VS-A 31002724 0-15 16 16 113,4 19,6 33,4 40 - 2,5 15 x 4 x 4

Pc.
161-20M250806 31002127-1 3,5-65 20 25 164,8 28,4 92,8 103 33,5 1,5 20 x 8 x 6

Pc.
161-20M250806 31002127-2 0-65 20 25 167,3 28,4 95,3 103 33,5 4 25 x 8 x 6

Pc.
