Series 162

Zeus Form Knurling Tool 162

Ideal for very small workpiece diameters and applications up to a shoulder

Knurling wheels fixed by means of carbide collar studs
Knurl holder is easily adjustable to workpiece diameter by means of synchronous spindle
Set screws in shank for clearance angle correction
Modular shank design: Shank size 10 x 10 mm optionally adaptable

Other variants available on request.

Left-hand version of all shank dimensions available on request.

Suitable knurling wheels:

Knurling profiles on DIN 82 workpiece:

Plunge/feed knurling

Knurling Process and Tool Characteristics

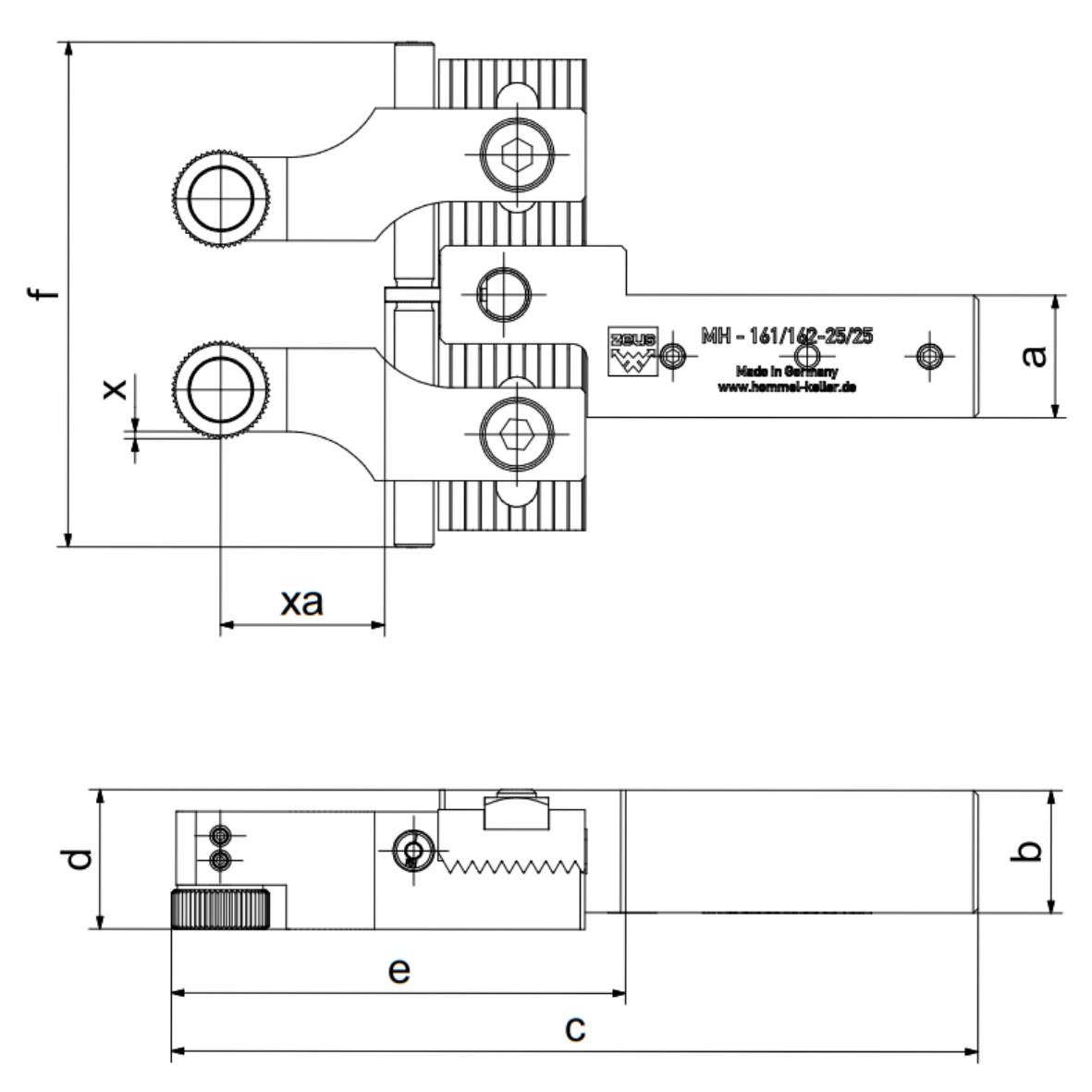

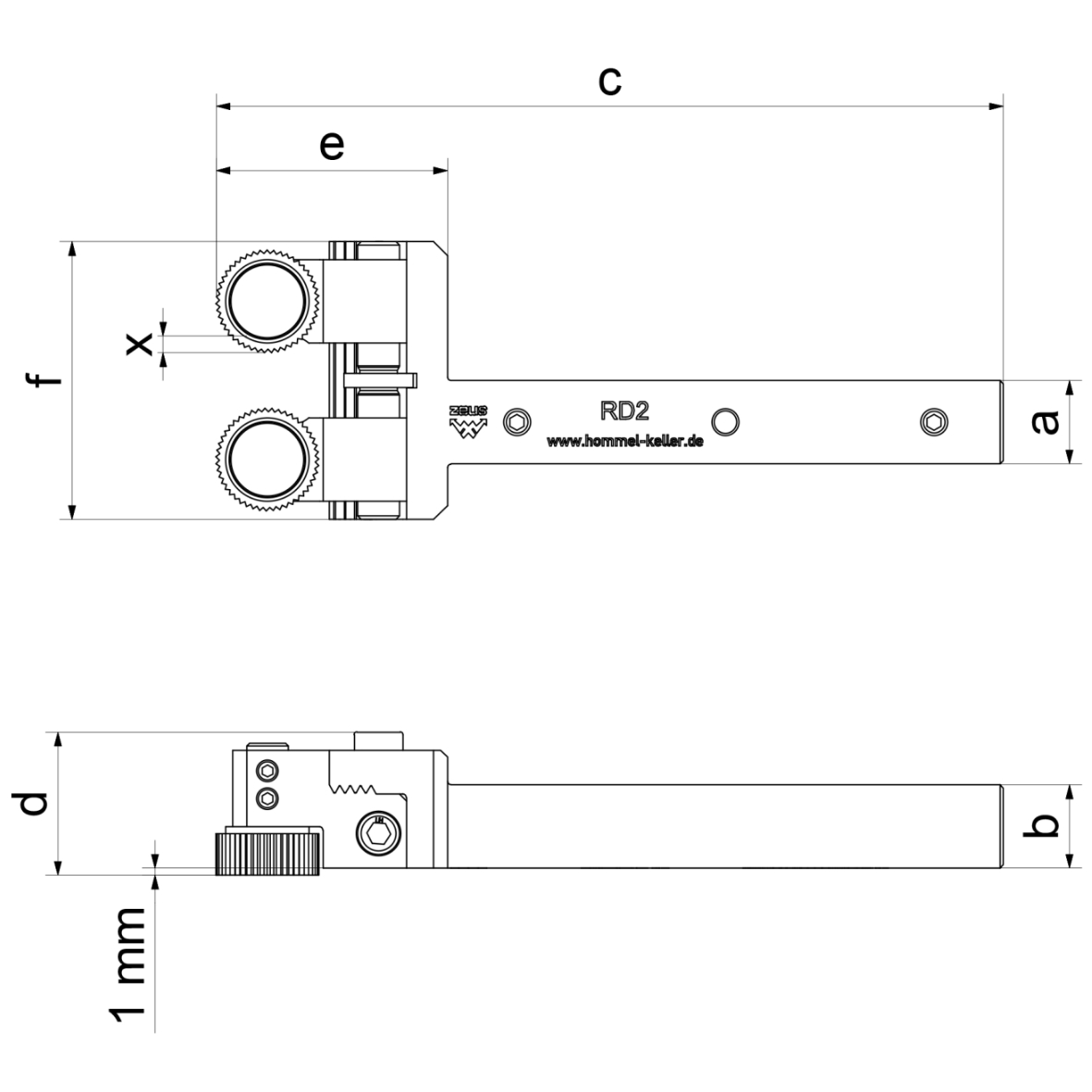

Description	Article No.	Working area Ø	a	b	c	d	e	f	xa	x	Knurling wheels (Ø x b x b)	In cart

162-10R150606A11-VS-A	31002713	0-15	10	10	113,4	20,6	33,4	40	-	2,5	15 x 6 x 6A11	Pc.
162-12R150606A11-VS-A	31002714	0-15	12	12	113,4	20,6	33,4	40	-	2,5	15 x 6 x 6A11	Pc.
162-16R150606A11-VS-A	31002715	0-15	16	16	113,4	20,6	33,4	40	-	2,5	15 x 6 x 6A11	Pc.
162-20M200806A13	31002128	3,5-65	20	25	164,8	28,4	92,8	103	33,5	1,5	20 x 8 x 6A13	Pc.
