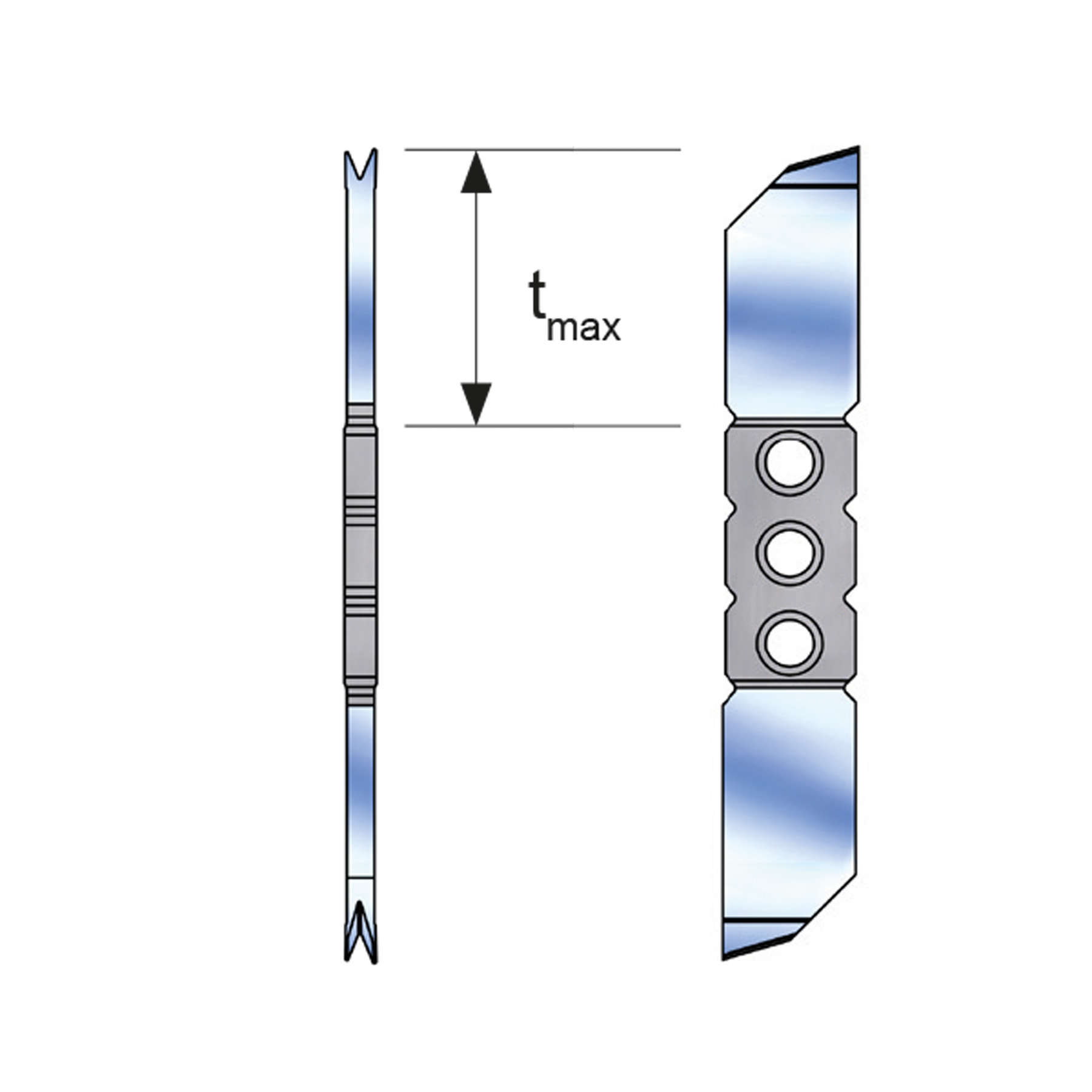

45°-R01
45°-R01
45°-R01

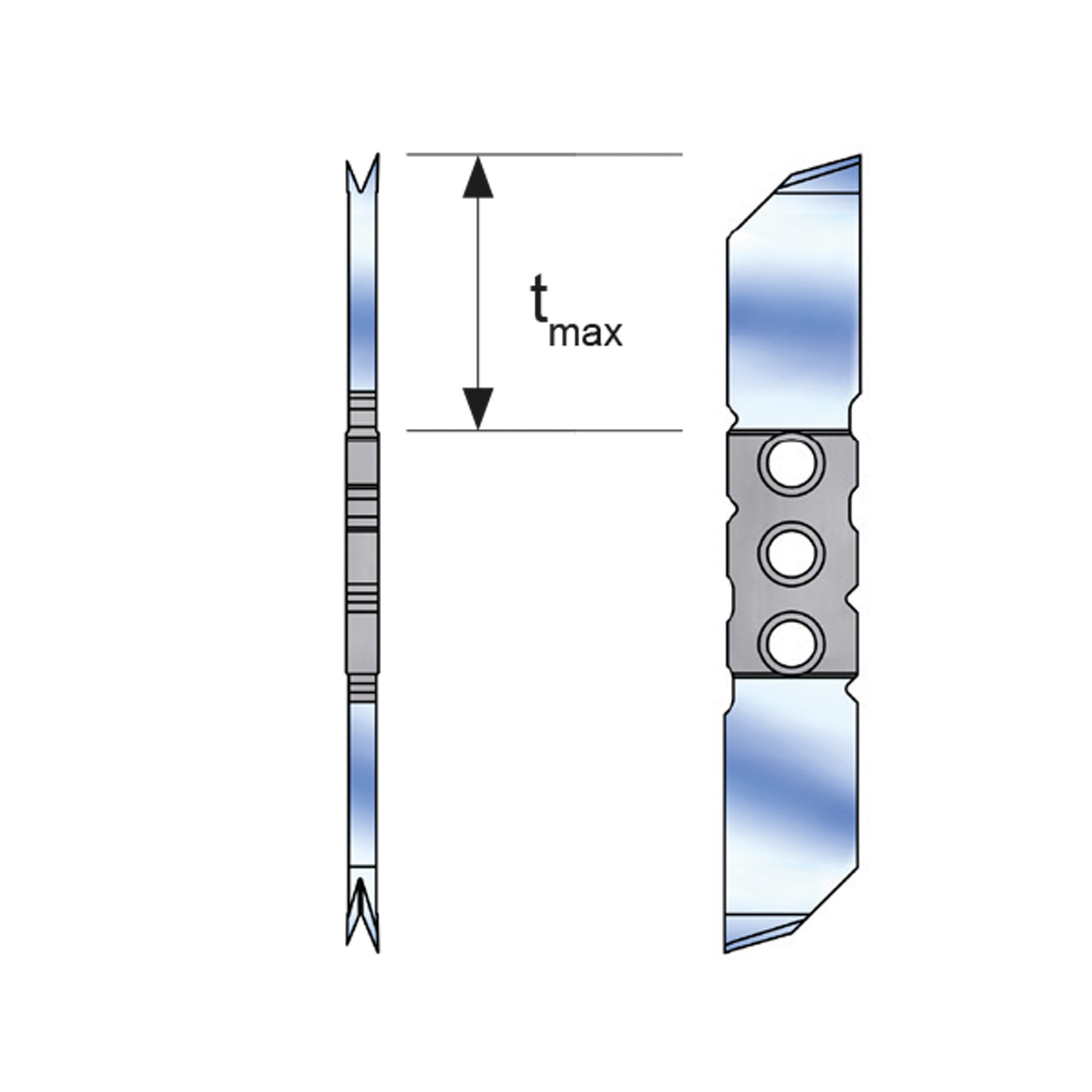

KP-2-9 45°

Ground indexable inserts for parting off plastics, cutting

  • Cutting width up to 2 mm
  • Insert height up to 9 mm
  • Ctting depth up to 18 mm

Right-hand versions shown

Suitable tool holders:

Right-hand holder with right-hand insert
Left-hand holder with left-hand insert

Cutting Data Recommendations: KP-2-9



Description Article No. Geometry Direction b tmax R a In cart
KP-2-9-10-12-45°-S-R-UFK2 138681 45° R 1,0 12 0 0,5

Pc.
KP-2-9-10-12-45°-S-L-UFK2 180131 45° L 1,0 12 0 0,5

Pc.
KP-2-9-15-18-45°-S-R-UFK2 180129 45° R 1,5 18 0 0,5

Pc.
KP-2-9-15-18-45°-S-L-UFK2 180132 45° L 1,5 18 0 0,5

Pc.
KP-2-9-20-18-45°-S-R-UFK2 180130 45° R 2,0 18 0 0,5

Pc.
KP-2-9-20-18-45°-S-L-UFK2 180133 45° L 2,0 18 0 0,5

Pc.
KP-2-9-10-12-45°-S-01-R-UFK2 140830 45°-R01 R 1,0 12 0,1 0,5

Pc.
KP-2-9-10-12-45°-S-01-L-UFK2 157840 45°-R01 L 1,0 12 0,1 0,5

Pc.
KP-2-9-15-18-45°-S-01-R-UFK2 143843 45°-R01 R 1,5 18 0,1 0,5

Pc.
KP-2-9-15-18-45°-S-01-L-UFK2 141393 45°-R01 L 1,5 18 0,1 0,5

Pc.
KP-2-9-20-18-45°-S-01-R-UFK2 144140 45°-R01 R 2,0 18 0,1 0,5

Pc.
KP-2-9-20-18-45°-S-01-L-UFK2 144139 45°-R01 L 2,0 18 0,1 0,5

Pc.
