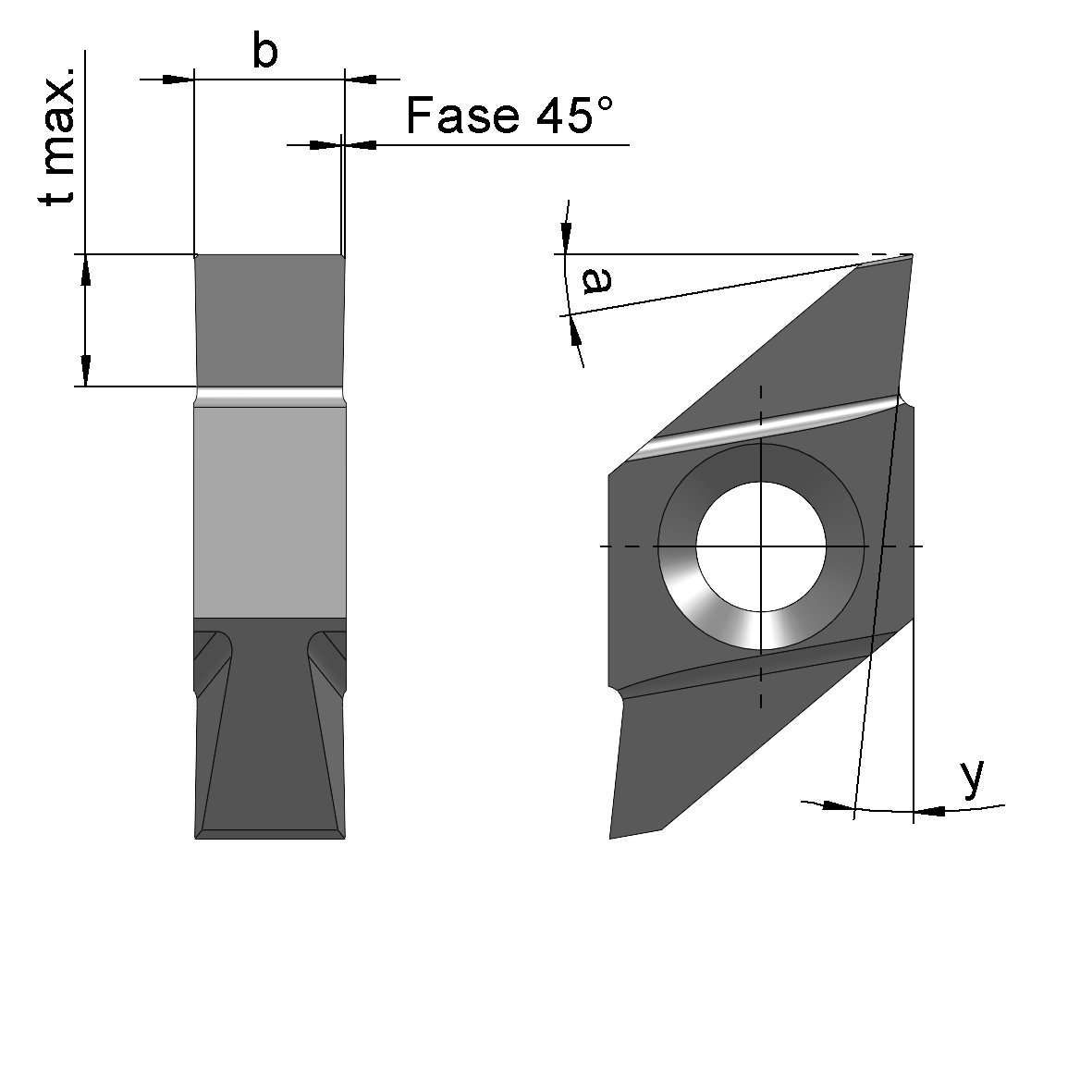

SMP-06-300.. indexable inserts with a cutting width of 3 mm
Right-hand versions shown
Suitable tool holders:
PFV
(Polygon cutters with adjustable cartridges as holder for the indexable inserts)
SM
(Classic polygon cutters in one piece)
| Description | Article No. | Direction | b | tmax | Chamfer 45° | a | y | Coating | In cart | |
|---|---|---|---|---|---|---|---|---|---|---|
| SMP-06-300-L-G1A-BD3 | 103387 | LH | 3 | 2,2 | 0 | 10° | 6° | BD3 | ||
| SMP-06-300-L-G1A-BD7 | 112036 | LH | 3 | 2,2 | 0 | 10° | 6° | BD7 | ||
| SMP-06-300-L-G1A-FK | 103386 | LH | 3 | 2,2 | 0 | 10° | 6° | FK | ||
| SMP-06-300-R-G1A-BD3 | 103389 | RH | 3 | 2,2 | 0 | 10° | 6° | BD3 | ||
| SMP-06-300-R-G1A-BD7 | 111609 | RH | 3 | 2,2 | 0 | 10° | 6° | BD7 | ||
| SMP-06-300-R-G1A-FK | 103388 | RH | 3 | 2,2 | 0 | 10° | 6° | FK | ||
| SMP-06-300-01-L-G1A-BD3 | 103395 | LH | 3 | 2,2 | 0,1 | 10° | 6° | BD3 | ||
| SMP-06-300-01-R-G1A-BD3 | 103396 | RH | 3 | 2,2 | 0,1 | 10° | 6° | BD3 | ||
| SMP-06-300-01-R-G1A-BD7 | 139221 | RH | 3 | 2,2 | 0,1 | 10° | 6° | BD7 | ||
| SMP-06-300-01-R-G1A-FK | 144525 | RH | 3 | 2,2 | 0,1 | 10° | 6° | FK |
