Montageanleitung DREMA Höhenverstellbare Rückseitenwerkzeuge

Tornos Base Holders

Base holder for various machine types

  • Stability
    Highest stability through dovetail guides and a lot of solid material on the holder
  • Set-up time optimization
    Fastest tool change compared to competing systems byloosening just one screw
  • Accuracy
    Best positional accuracy after tool change through presetting outside the machine

Suitable distance plates:

Suitable tool holder blocks:

Device for adjusting the height of rear end machining tools:

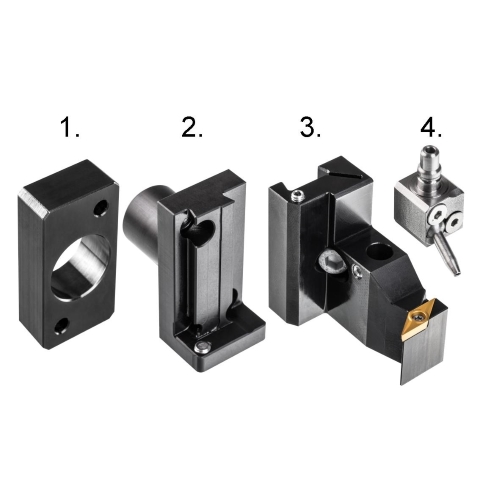

System structure:

  1. Distance plate
  2. Base holder
  3. Tool holder block
  4. Coolant attachment

System Structure DREMA Height Adjustable Rear End Machining Tools



Description Article No. Maschinen-Typ D L T H B X Y h1 h2 In cart
DRM-GH20-40 179147 Delta20/Gamma20 20 40 9 56 28 - - 30 26

Pc.
DRM-GH25-100 179156 Deco7/10/13/20 (25 shank) 25 100 9 56 28 - - 30 26

Pc.
DRM-GH32-50 179157 Delta385 w/o drive 32 50 9 56 28 - - 30 26

Pc.
DRM-GH20-100 179158 Deco7/10/13/20 (20 shank) 20 100 9 56 28 - - 30 26

Pc.
