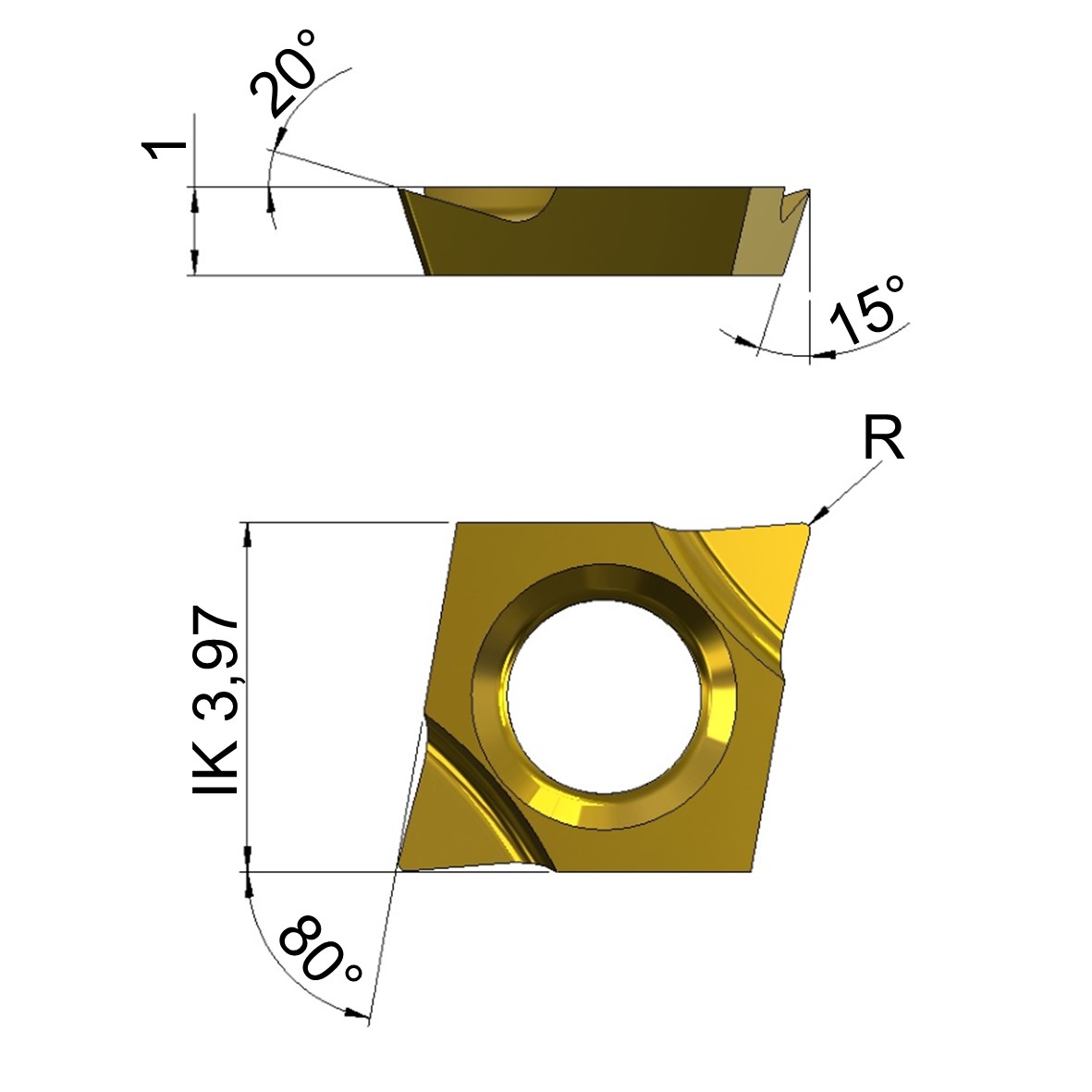

CDGT-0401..N
CDGT-0401..N

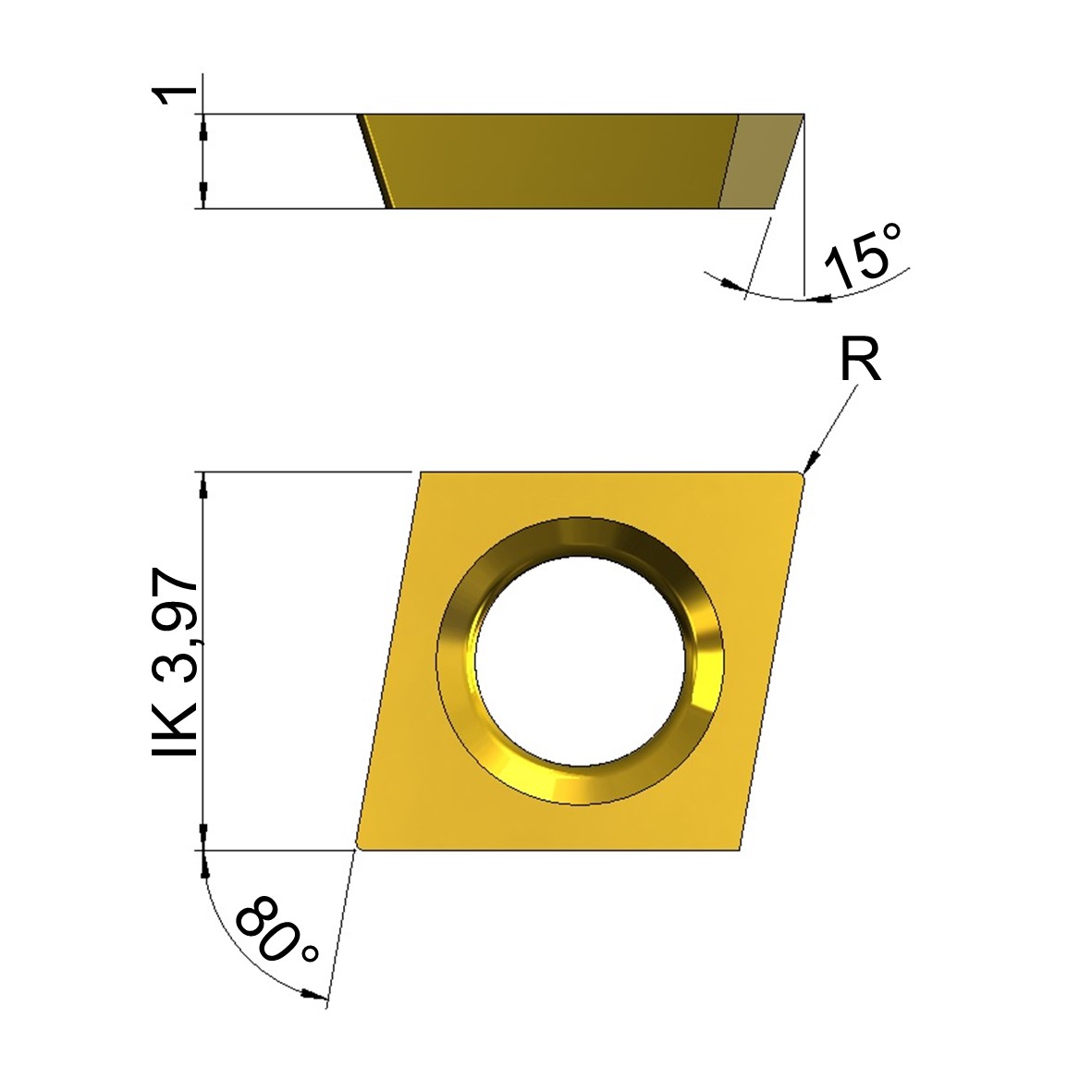

CDGW-0401..
CDGW-0401..

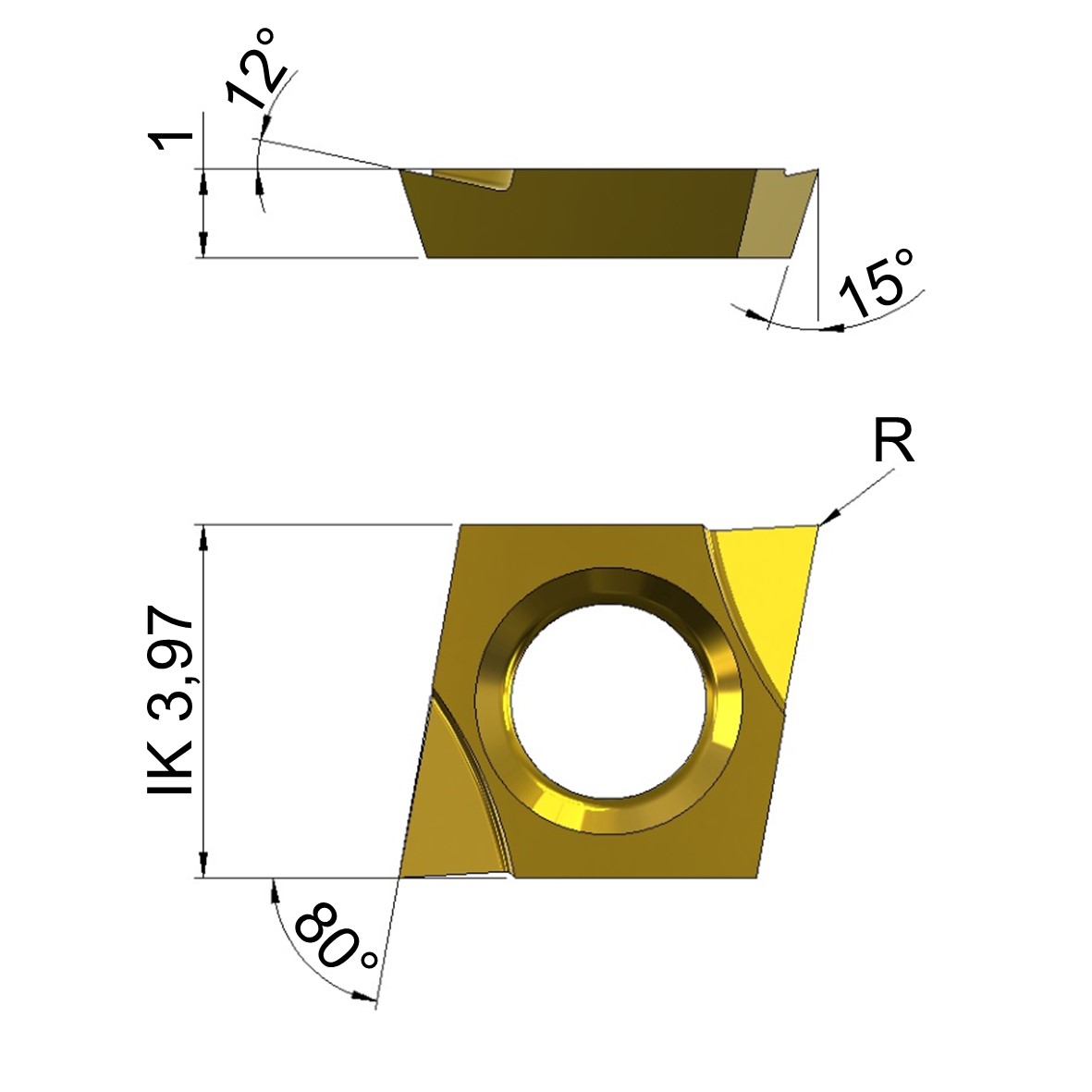

CDGT-0401..L
CDGT-0401..L
CDGT-0401..N
CDGT-0401..N
CDGW-0401..
CDGW-0401..
CDGT-0401..L
CDGT-0401..L

CD..-04.. Indexable Inserts

Indexable inserts acc. to ISO 1832

Special designs available on demand

Suitable tool holders:

MFE-04-SCLDR MINIFIX Holders

MFE-06-SCLDR MINIFIX Holders

SCLD-04 > 95° Boring Bars

SCLD-0408 > 95° Boring Bars

Right-hand holder with left-hand insert



Description Article No. Type Geometry Direction R Coating In cart
CDGT-040101-N-G1A-BD1 169939 CDGT CDGT-0401..N N 0,1 BD1

Pc.
CDGT-040101-N-G1A-K10 167870 CDGT CDGT-0401..N N 0,1 -

Pc.
CDGT-040102-N-G1A-BD1 169940 CDGT CDGT-0401..N N 0,2 BD1

Pc.
CDGT-040102-N-G1A-K10 167871 CDGT CDGT-0401..N N 0,2 -

Pc.
CDGT-040104-N-G1A-BD1 169941 CDGT CDGT-0401..N N 0,4 BD1

Pc.
CDGT-040104-N-G1A-K10 167872 CDGT CDGT-0401..N N 0,4 -

Pc.
CDGW-040100-N-G1A-BD1 169942 CDGW CDGW-0401.. N 0 BD1

Pc.
CDGW-040100-N-G1A-K10 167863 CDGW CDGW-0401.. N 0 -

Pc.
CDGW-040101-N-G1A-BD1 169943 CDGW CDGW-0401.. N 0,1 BD1

Pc.
CDGW-040101-N-G1A-K10 167864 CDGW CDGW-0401.. N 0,1 -

Pc.
CDGW-040102-N-G1A-BD1 169944 CDGW CDGW-0401.. N 0,2 BD1

Pc.
CDGW-040102-N-G1A-K10 167865 CDGW CDGW-0401.. N 0,2 -

Pc.
CDGW-040104-N-G1A-BD1 169945 CDGW CDGW-0401.. N 0,4 BD1

Pc.
CDGW-040104-N-G1A-K10 167866 CDGW CDGW-0401.. N 0,4 -

Pc.
CDGT-040100-L-G1A-BD1 169934 CDGT CDGT-0401..L LH 0 BD1

Pc.
CDGT-040100-L-G1A-K10 167566 CDGT CDGT-0401..L LH 0 -

Pc.
CDGT-040101-L-G1A-BD1 169935 CDGT CDGT-0401..L LH 0,1 BD1

Pc.
CDGT-040101-L-G1A-K10 167567 CDGT CDGT-0401..L LH 0,1 -

Pc.
CDGT-040102-L-G1A-BD1 169937 CDGT CDGT-0401..L LH 0,2 BD1

Pc.
CDGT-040102-L-G1A-K10 167568 CDGT CDGT-0401..L LH 0,2 -

Pc.
CDGT-040104-L-G1A-BD1 169938 CDGT CDGT-0401..L LH 0,4 BD1

Pc.
CDGT-040104-L-G1A-K10 167569 CDGT CDGT-0401..L LH 0,4 -

Pc.
