Maximum stability up to a shoulder
Other shank variants available on reques.

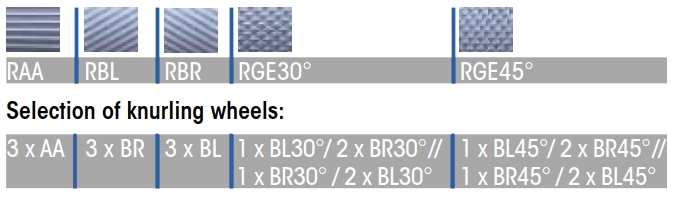

Suitable knurling wheels:
Knurling profiles on DIN 82 workpiece:
Feed knurling

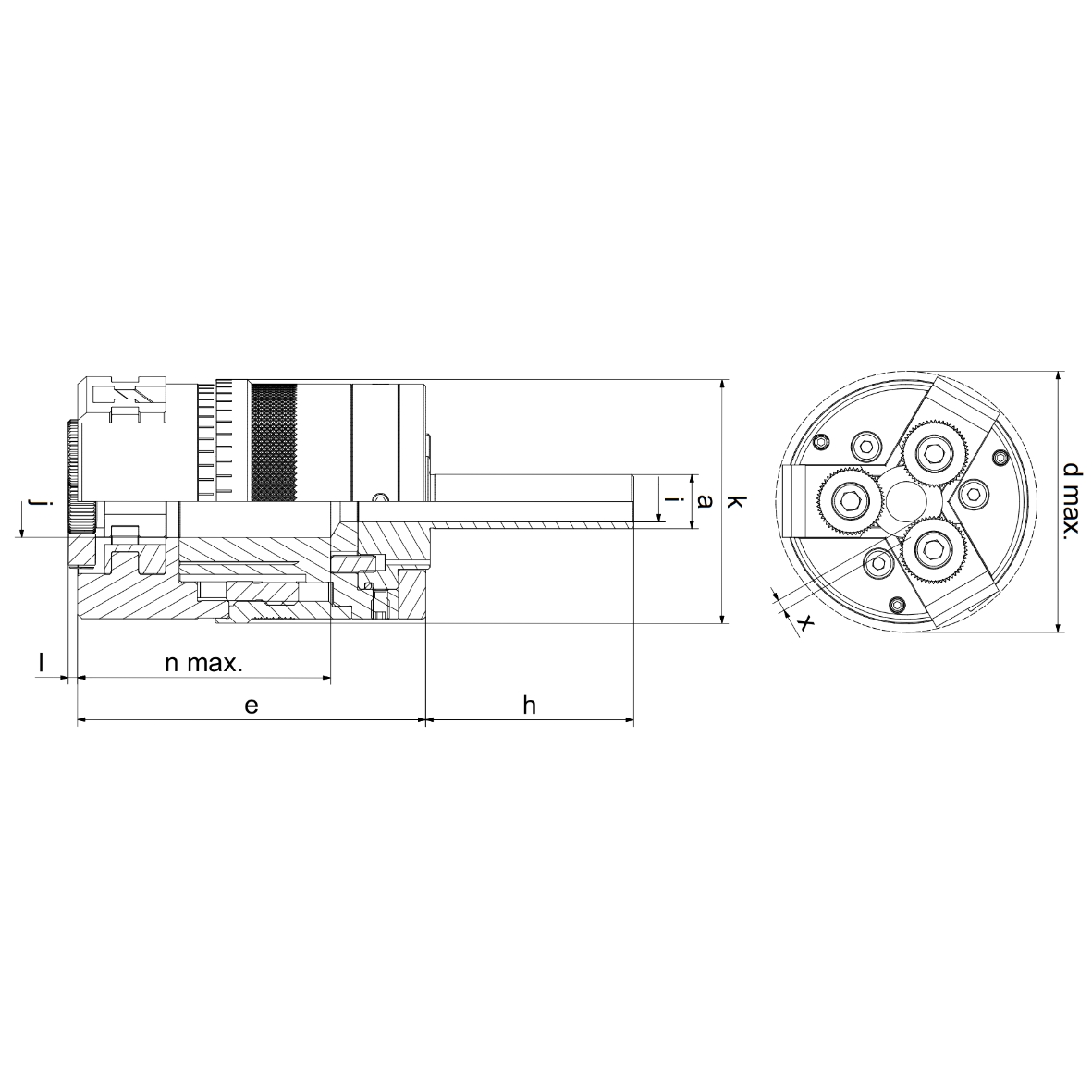

| Description | Article No. | Working area Ø | a Ø | d max. Ø | e | h | i Ø | j Ø | k Ø | l | n max. | x Ø | Knurling wheels (Ø x b x b) | In cart | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 192-12M150606A8-B | 31001948 | 3-12 | 12 | 57 | 78 | 45 | 9 | 16 | 54 | 2 | 56 | 2,5 | 15 x 6 x 6A8 |
