Zeus Form Knurling Tool 191

Maximum stability for exact precision

Easy and precise fine adjustment
Modular exchangeable knurl holder jaws for conversion to knurling up to a shoulder (192) or a cut knurling tool (291)
Carbide pins

Other shank variants available on request.

Suitable knurling wheels:

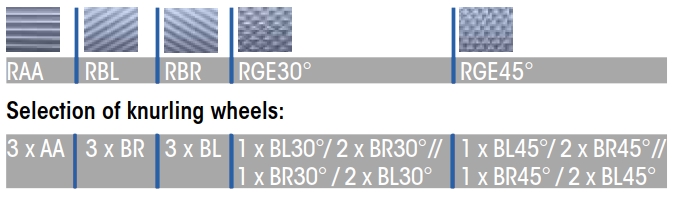

Knurling profiles on DIN 82 workpiece:

Feed knurling

Knurling Process and Tool Characteristics

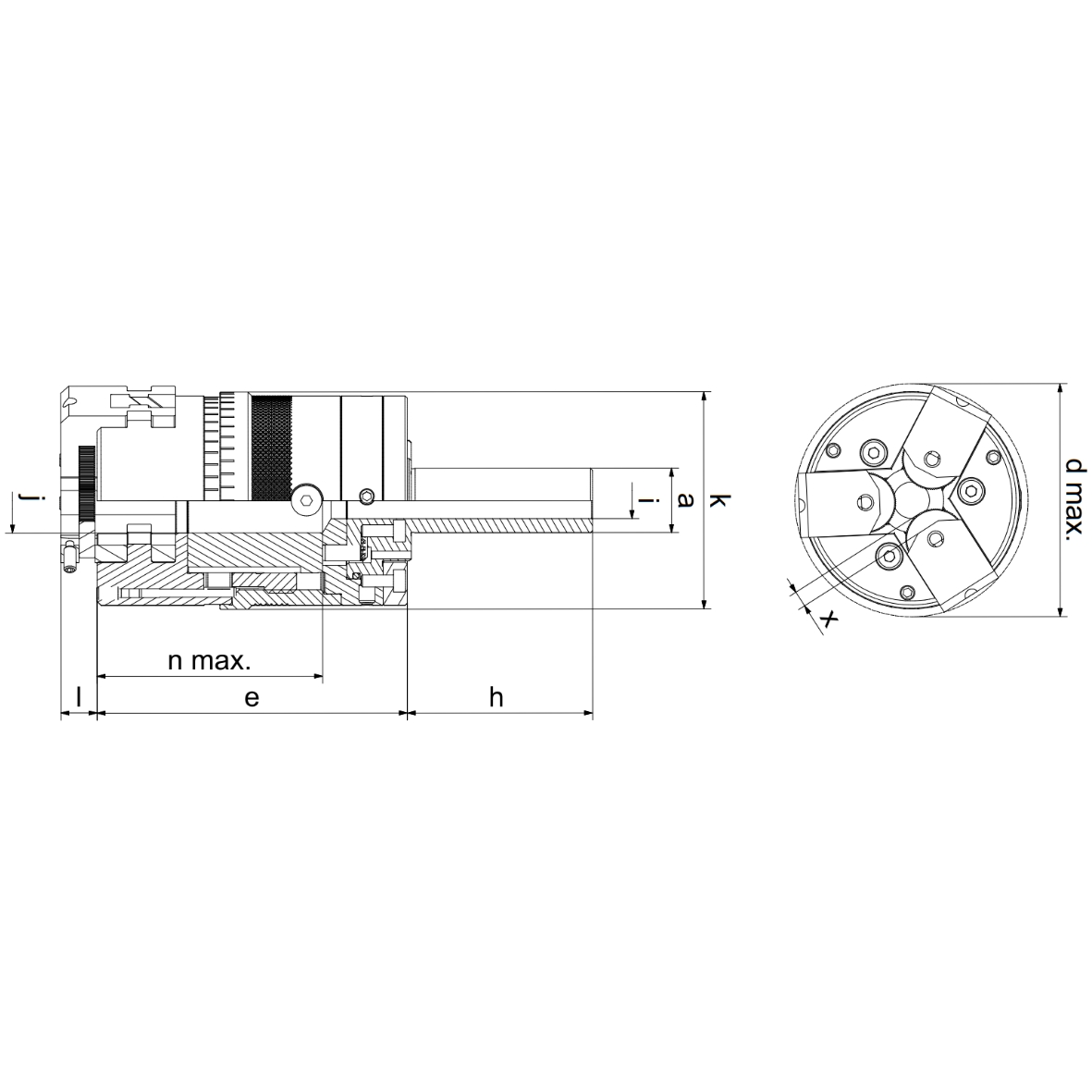

Description	Article No.	Working area Ø	a Ø	d max. Ø	e	h	i Ø	j Ø	k Ø	l	n max.	x Ø	Knurling wheels (Ø x b x b)	In cart

191-12M150404-B	31001902-1	2-13,5	12	57	78	45	9	16	54	9	56	1,5	10 x 4 x 4	Pc.
191-12M150404-B	31001902-2	3-8,5	12	57	78	45	9	16	54	9	56	4	15 x 4 x 4	Pc.
